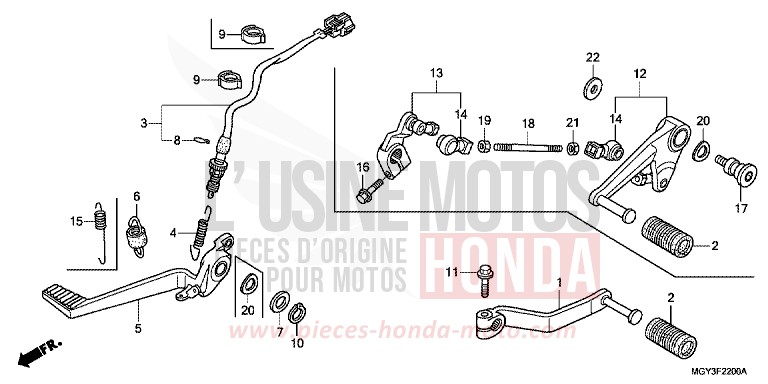

PEDAL for VFR800X MAT BULLET SILVER (NH389) from 2013

PEDAL for VFR800X MAT BULLET SILVER (NH389) from 2013
Reference
Product name
#2 24781-KR3-770

RUBBER, GEAR CHANGE PEDAL

Price €8.78
#3 35350-MGY-D21

SWITCH ASSY, RR STOP

Price €73.02
#4 35357-MBR-000

SPRING, STOP SWITCH

Price €7.72
#5 46500-MGY-D20

PEDAL COMP, RR BRAKE

Price €111.86
#7 90557-230-000

WASHER, 152X25

Price €6.80
#8 90601-KAF-003

CLIP, SWITCH COVER

Price €6.23
#9 90683-KJ2-003 i

CLIP, WIRE HARNESS

Price €9.12
#10 94511-15000

CIRCLIP, EXTERNAL, 15MM

Price €0.94
#12 24705-MGY-D20

PEDAL COMP, GEAR CHANGE

Price €111.59
#13 24710-MGY-D20

ARM COMP, CHANGE

Price €154.56
#14 24724-MBW-D21

COVER, DUST

Price €16.73
#15 46511-MGY-D20

SPRING, BRAKE PEDAL

Price €14.36
#16 90010-ML0-720

BOLT, FLANGE, 6X20

Price €5.21
#17 90113-MCF-000

BOLT, CHANGE PIVOT

Price €17.89
#18 90165-MGY-D20

BOLT, TIE ROD

Price €15.52
#19 90201-700-000 i

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

Price €0.86
#20 90505-MBW-000

WASHER, CHANGE PEDAL WAVE

Price €8.00
#21 94002-060200S i

NUT, HEX, 6MM

Price €1.00
#22 94103-08000

WASHER, PLAIN, 8MM

Price €0.79
