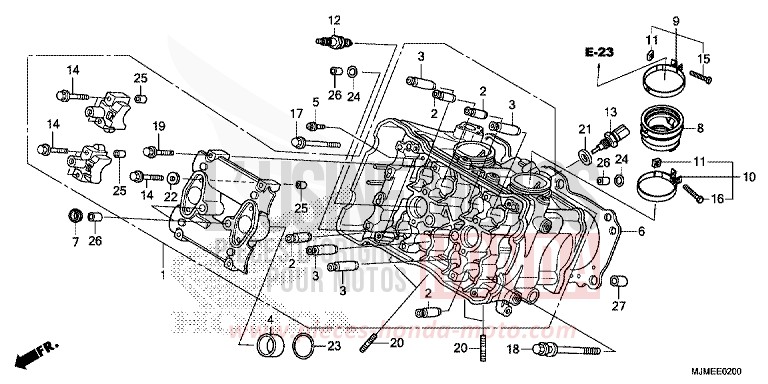

CYLINDER HEAD (FRONT) for VFR800X MAT BALLISTIC BLACK METALLIC (NHA86) from 2017

CYLINDER HEAD (FRONT) for VFR800X MAT BALLISTIC BLACK METALLIC (NHA86) from 2017
Reference
Product name
#1 12010-MJM-D00

HEAD ASSY, FR CYLINDER

Price €2,482.68
#2 12204-MCW-305

GUIDE A, VALVE (OS)

Price €39.47
#3 12205-MCW-305

GUIDE B, VALVE (OS)

Price €40.32
#4 12217-MBG-000

COLLAR, 25MM

Price €12.77
#5 12217-MCE-000

BOLT, ORIFICE

Price €9.67
#6 12251-MCW-013

GASKET, FR CYLINDER HEAD

Price €78.44
#7 12396-MBG-000

GASKET C, HEAD COVER

Price €7.81
#8 16211-MCW-D00

INSULATOR, THROTTLE BODY

Price €40.24
#9 16217-MJM-D00

BAND, INSULATOR

Price €15.61
#10 16218-MCW-000

BAND B, INSULATOR

Price €13.15
#11 16222-MV4-300

NUT, SQUARE, 5MM

Price €3.23
#12 31911-HW1-671

PLUG, SPARK (IMR9D-9H) (NGK)

Price €37.81
#12 31912-HW1-671

PLUG, SPARK (VNH27ZB) (DENSO)

Price €70.27
#13 37870-MBG-003

SENSOR ASSY, WATER TEMPERATURE

Price €98.24
#14 90002-MCW-000

BOLT, FLANGE, 6X45

Price €3.60
#15 90005-MAS-E00

BOLT, RECESSED, 5X28

Price €5.03
#16 90005-MM4-000

BOLT, RECESSED, 5X32

Price €3.35
#17 90006-GHB-780

BOLT, FLANGE, 6X75 (NSHF)

Price €4.30
#18 90007-MCW-000

BOLT-WASHER, 9X100

Price €9.25
#19 90016-KT7-000

BOLT, FLANGE, 6X37

Price €5.56
#20 90035-MW4-000

BOLT, STUD, 6X22

Price €4.68
#21 90454-MC7-000

WASHER, SPECIAL, 12MM

Price €5.53
#22 90463-ML7-000

WASHER, SEALING, 65MM

Price €5.84
#23 91307-PY4-003

O-RING, 245X19

Price €4.50
#24 91317-P4V-004

O-RING, 98X19 (ARAI)

Price €2.70
#25 94301-08140

DOWEL PIN, 8X14

Price €2.02
#26 94301-10160

DOWEL PIN, 10X16

Price €2.33
#27 94301-12200

DOWEL PIN, 12X20

Price €2.04
