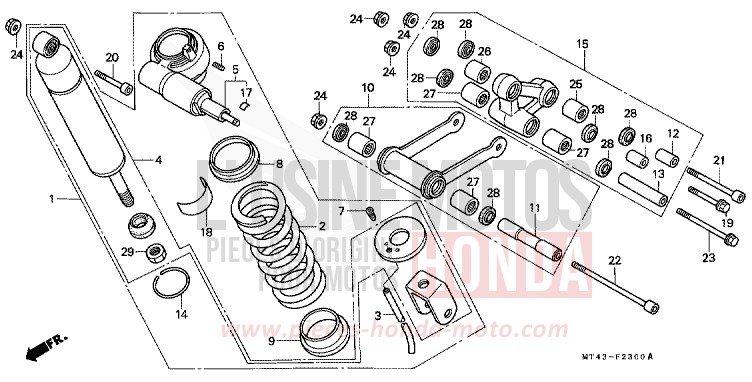

REAR CUSHION (VFR750FL/FM) for VFR750F PURE RED (R158) from 1990

REAR CUSHION (VFR750FL/FM) for VFR750F PURE RED (R158) from 1990
Reference
Product name
#1 52400-MT4-003

CUSHION ASSY, RR (SHOWA)

Contact us
#2 52401-MT4-003

SPRING, RR CUSHION

Contact us
#3 52405-KT8-003

PIPE, DRAIN

Contact us
#4 52410-MT4-003

DAMPER COMP, RR (SHOWA)

Contact us
#5 52420-MT4-003

ADJUSTER COMP, RR CUSHION (SHOWA)

Contact us
#6 52455-ML7-003

SCREW, SOCKET SETTING

Contact us
#7 52456-KB7-003

CONNECTOR OF PIPE ()

Price €3.66
Contact us
#8 52458-ML7-691

SEAT, SPRING

Price €27.52
#9 52459-ML7-691

SEAT C, SPRING (SHOWA)

Price €44.84
#10 52460-MT4-000

ROD ASSY, CUSHION CONNECTING

Contact us
#11 52462-ML7-000

COLLAR, CONNECTING ROD PIVOT

Price €22.30
Contact us
#12 52463-KV3-000

BAND OF ARM D'AMORTESSEUR

Price €20.20
#13 52463-MT4-000

COLLAR, CONNECTING ROD LOWER

Price €18.06
Contact us
#14 52464-ML7-003

RING, STOPPER

Price €12.22
#15 52470-MT4-000

ARM ASSY, CUSHION

Contact us
#16 52477-KT7-000

COLLAR, CUSHION ARM

Price €14.95
Contact us
#17 87503-MM5-003

LABEL (SHOWA)

Contact us
#18 87516-KY7-911 i

LABEL, RR DAMPER WARNING

Price €11.44
#19 90107-MR8-000

BOLT, FLANGE, 10X57

Price €9.55
#20 90110-ML7-000

INNENSECHSKANTBOLT, 10X55

Price €7.31
#21 90110-MR7-000

INNENSECHSKANTBOLT, 10X70

Price €10.82
#22 90111-ML7-000

BOLT, SOCKET, 10X148

Contact us
#23 90181-KE7-000 i

BOLT, FLANGE, 10X113

Price €19.28
#24 90304-GE8-003 i

U-NUT, 10MM (FUSE RASHI)

Price €6.92
#25 91071-KV3-005 i

NEEDLE BEARING (KOYO)

Price €26.09
#26 91072-KT7-003 i

NEEDLE BEARING, 17X24X20 (NTN)

Price €26.09
#27 91072-MJ0-003 i

BEARING, NEEDLE, 17X24X25 (NTN)

Price €26.09
#28 91262-MG7-005 i

GASKET SEALING OIL, 17X27X5

Price €7.08
#29 94031-14080

NUT, HEX, 14MM

Price €1.36
