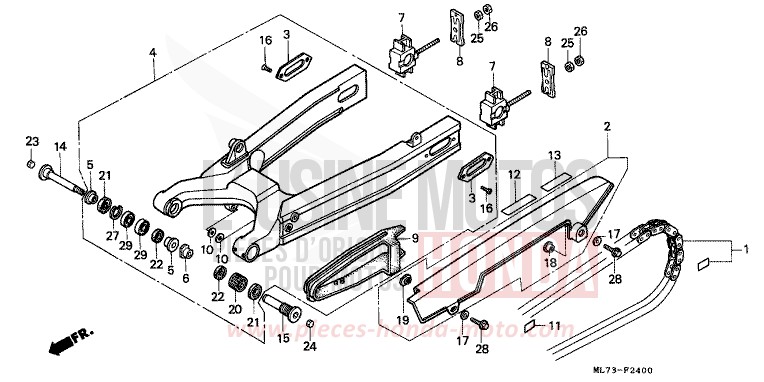

SWING ARM/CHAIN CASE for VFR750F PEARL DIANA BLUE (PB174P) from 1986

SWING ARM/CHAIN CASE for VFR750F PEARL DIANA BLUE (PB174P) from 1986
Reference
Product name
#1 405B3-ML7-003

CHAIN SET, DRIVE (DID50VSI DAIDO)

Contact us
#1 405B3-ML7-005

CHAIN SET, DRIVE (RK50HF0 TAKASAGO)

Contact us
#2 40510-ML7-000

CASE, DRIVE CHAIN

Contact us
#3 42308-ML7-000

WASHER, SWINGARM OUTER

Contact us
#4 52100-ML7-000

SWINGARM ASSY

Contact us
#5 52102-ML7-000

COLLAR, R PIVOT

Contact us
#6 52103-ML7-000

NUT, R PIVOT

Price €12.56
Contact us
#7 52120-ML7-000

ADJUSTER, CHAIN

Contact us
#8 52121-MJ6-720

PLATE, CHAIN ADJUSTER

Price €34.32
Contact us
#9 52170-ML7-000

SLIDER, CHAIN

Price €61.98
Contact us
#10 52466-MB2-000

WASHER, THRUST

Price €8.70
#12 87505-ML7-610

MARK, TIRE CAUTION

Contact us
#14 90121-ML7-000

BOLT, R PIVOT

Contact us
#15 90122-ML7-000

BOLT, L PIVOT

Contact us
#16 90124-KA3-830

SCREW, FLAT, 5X45

Price €9.20
#17 90485-MB2-000

WASHER, 6MM

Price €4.06
#18 90512-422-000

WASHER, CHAIN CASE SETTING

Price €3.79
#19 87507-ML7-610

MARK, DRIVE CHAIN CAUTION

Contact us
#19 90513-405-000

WASHER, 6X9

Price €3.98
#20 91071-MJ0-003

BEARING, NEEDLE, 22X29X30 (NTN)

Price €38.08
#21 91213-MB2-003

DUST SEAL, 22X35X7 (ARAI)

Price €13.63
#21 91213-MB2-006

DUST SEAL, 22X35X7 (NOK)

Price €13.63
#22 91283-ML7-003

DUST SEAL, 22X29X4 (ARAI)

Price €9.01
#23 91456-MB2-000

PLUG, HEX, 12MM

Price €3.34
Contact us
#24 91457-ML0-000

PLUG, HEX, 14MM

Price €3.34
Contact us
#25 94001-080000S

NUT, HEX, 8MM

Price €1.16
#26 94030-08000

NUT, HEX, 8MM

Price €0.86
#27 94520-35000

CIRCLIP, INTERNAL, 35MM

Price €1.70
#28 95700-0601407

BOLT, FLANGE, 6X14

Price €1.13
#29 96100-6202010

BEARING, RADIAL BALL, 6202

Price €12.94
