FR. BRAKE MASTER CYLINDER 🏍️ VFR750F
HANDLE PIPE/TOP BRIDGE 🏍️ VFR750F

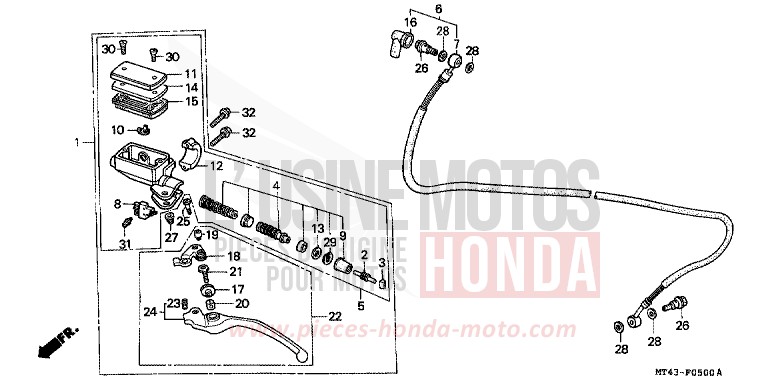

CLUTCH MASTER CYLINDER for VFR750F PEARL CRYSTAL WHITE (NH193) from 1992

CLUTCH MASTER CYLINDER for VFR750F PEARL CRYSTAL WHITE (NH193) from 1992
Reference
Product name
#1 22880-ML7-921

CYLINDER ASSY, CLUTCH MASTER (NISSIN)

Contact us
#2 22884-MB0-006

ROD, PUSH

Price €35.99
#3 22885-MB0-006

BUSH

Price €13.84
#4 22886-MB0-305

PISTON SET, CLUTCH MASTER CYLINDER

Price €104.17
#6 22900-MT4-000

HOSE COMP, CLUTCH

Contact us
#8 35330-MB0-003

SWITCH ASSY, CLUTCH

Price €36.64
#9 45504-410-003

BOOT COMP

Price €15.22
#10 45512-MA6-006

PROTECTOR

Price €74.21
#11 45513-MM4-006

CAP, MASTER CYLINDER

Price €58.48
#12 45517-KR3-901

HOLDER, MASTER CYLINDER

Price €26.34
#13 45518-MB0-006

PLATE, STOPPER

Price €7.27
#14 45518-MM5-006

PLATE, DIAPHRAGM

Price €15.23
#15 45520-MM5-006

DIAPHRAGM

Price €33.04
#16 45522-422-000

BOOT, MASTER CYLINDER

Price €13.99
#17 53172-KV0-006

ADJUSTER, R HANDLE LEVER

Price €18.77
#18 53172-MJ4-701

KNOCKER, CLUTCH

Price €23.40
Contact us
#19 53177-KV0-006

BOLT, LEVER SOCKET, 5X5

Price €7.16
#20 53179-KV0-006

JOINT, LEVER

Price €4.57
#21 53180-KV0-006

BOLT, ADJUSTING

Price €9.31
#22 53180-ML7-691

LEVER ASSY, L HANDLE

Price €29.26
#23 53181-KV0-006

SPRING, HANDLE LEVER

Price €3.98
#24 53188-ML7-305

LEVER SET, L HANDLE

Price €29.26
Contact us
#25 90114-MA5-671

BOLT, HANDLE LEVER PIVOT

Price €11.93
#26 90145-MS9-611

BOLT, OIL, 10X22

Price €13.14
#27 90201-415-000

NUT, CAP, 6MM

Price €5.94
#28 90545-300-000

WASHER, OIL BOLT

Price €6.41
#29 90651-377-003

CIRCLIP, INTERNAL, 18MM

Price €5.80
#30 93600-040121G

SCREW, FLAT, 4X12

Price €0.76
#31 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#32 96001-0602207

BOLT, FLANGE, 6X22

Price €1.70
