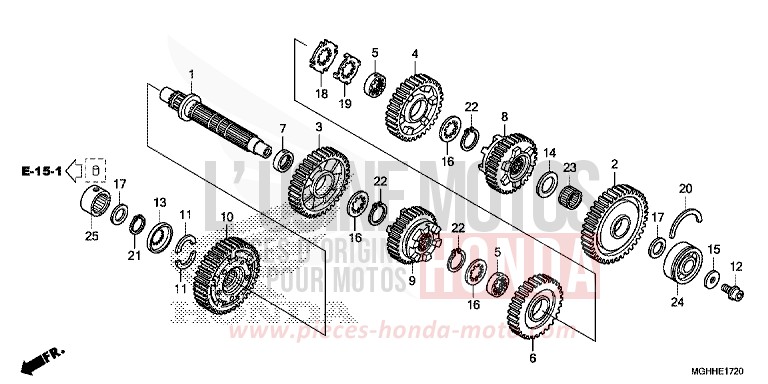

TRANSMISSION (VFR1200XD/XDA/XDS) (COUNTERSHAFT) for VFR1200X Dual Clutch PEARL GLARE WHITE (NHB53) from 2017

TRANSMISSION (VFR1200XD/XDA/XDS) (COUNTERSHAFT) for VFR1200X Dual Clutch PEARL GLARE WHITE (NHB53) from 2017
Reference
Product name
#1 23221-MGE-D00

COUNTERSHAFT

Price €177.32
#2 23421-MGH-D20

GEAR, COUNTERSHAFT FIRST (36T)

Price €212.05
#3 23441-MGE-J00

GEAR, COUNTERSHAFT SECOND (34T)

Price €202.74
#4 23461-MGE-J00

GEAR, COUNTERSHAFT THIRD (30T)

Price €200.03
#5 23462-MAT-000

COLLAR, SPLINE, 30X11

Price €31.28
#6 23481-MGH-D20

GEAR, COUNTERSHAFT FOURTH (31T)

Price €199.66
#7 23493-MGE-D00

COLLAR, 30X33X128

Price €19.66
#8 23501-MGH-D20

GEAR, COUNTERSHAFT FIFTH (29T)

Price €222.12
#9 23521-MGH-D20

GEAR, COUNTERSHAFT SIXTH (31T)

Price €218.92
#10 23530-MGH-D20

GEAR COMP, FINAL DRIVE (41T)

Price €460.19
#11 23545-MGE-000

COTTER, COUNTERSHAFT

Price €12.98
#12 90037-ME9-000

BOLT, SPECIAL, 10MM

Price €8.89
#13 90402-MGE-010

RETAINER, COUNTERSHAFT

Price €12.96
#14 90407-415-000

WASHER, THRUST, 26MM

Price €8.33
#15 90412-MGE-000

WASHER, 105X318X32

Price €10.67
#16 90452-MAT-000

WASHER, SPLINE, 30X36X15

Price €5.65
#17 90455-ML7-000

WASHER B, THRUST, 22MM (BLUE)

Price €8.36
#18 90463-MAT-000

WASHER, SPLINE, 30MM

Price €7.24
#19 90464-MAT-000

WASHER, LOCK, 30MM

Price €10.07
#20 90601-MA6-000

RING, BEARING SETTING, 56MM

Price €5.69
#21 90603-MN4-000

CIRCLIP, 28MM

Price €7.90
#22 90604-MM5-000

CIRCLIP, 30MM

Price €9.89
#23 91001-MCH-003

BEARING, NEEDLE, 26X30X13

Price €32.92
#24 91003-MGE-003

BEARING, SPECIAL BALL, 22X56X215

Price €38.30
#25 91025-MBT-F21

BEARING, NEEDLE, 22X38X193

Price €64.85
