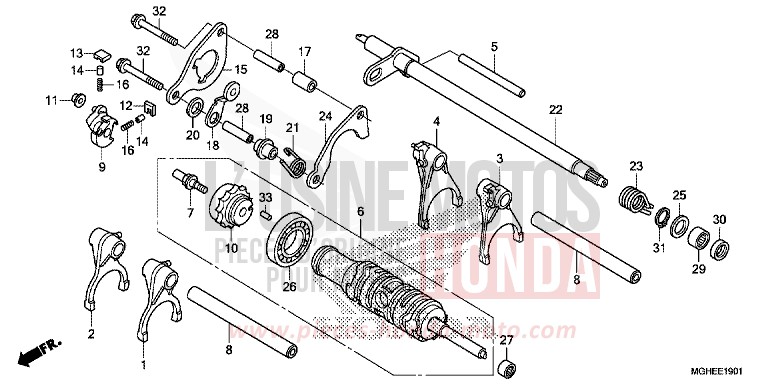

GEARSHIFT DRUM (VFR1200XD/XDA/XDL/XDS) for VFR1200X Dual Clutch MAT PEARL GLARE WHITE (NHB54) from 2014

GEARSHIFT DRUM (VFR1200XD/XDA/XDL/XDS) for VFR1200X Dual Clutch MAT PEARL GLARE WHITE (NHB54) from 2014
Reference
Product name
#1 24211-MGE-D00

FORK, L GEARSHIFT (MAIN)

Price €72.56
#2 24212-MGE-D00

FORK, R GEARSHIFT (MAIN)

Price €72.56
#3 24213-MGE-D00

FORK, L GEARSHIFT (COUNTER)

Price €72.56
#4 24214-MGE-D00

FORK, R GEARSHIFT (COUNTER)

Price €72.56
#5 24241-KPP-900

SHAFT, GEARSHIFT FORK

Price €16.94
#6 24300-MGE-D00

DRUM ASSY, GEARSHIFT

Price €171.96
#7 24315-MGE-D00

PIN, SHIFTER

Price €17.24
#8 24321-MGE-000

SHAFT, GEARSHIFT FORK

Price €28.48
#9 24321-MGE-D00

SHIFTER, DRUM

Price €52.50
#10 24322-MGE-D01

CENTER, SHIFT DRUM

Price €70.56
#11 24322-MM4-000

COLLAR, SHIFTER

Price €7.21
#12 24324-KA3-711

PAWL A, RATCHET

Price €13.07
#13 24325-KA3-711

PAWL B, RATCHET

Price €13.07
#14 24326-KBH-901

PLUNGER, PAWL

Price €11.40
#15 24328-MGE-D00

PLATE, CHANGE GUIDE

Price €12.59
#16 24329-KA3-740

SPRING, PAWL PLUNGER

Price €4.37
#17 24329-KT8-000

COLLAR, GUIDE PLATE DISTANCE

Price €9.53
#18 24430-MGE-000

STOPPER COMP, DRUM

Price €23.70
#19 24434-MGE-000

COLLAR, DRUM STOPPER

Price €12.98
#20 24435-MGE-000

COLLAR, DRUM STOPPER SIDE

Price €8.66
#21 24436-MGE-D00

SPRING, SHIFT DRUM STOPPER

Price €13.61
#22 24610-MGE-D00

SPINDLE COMP, GEARSHIFT

Price €70.46
#23 24651-MGE-D00

SPRING, SHIFT RETURN

Price €12.06
#24 24655-MGE-D00

PLATE, SHIFT DRUM BEARING SETTING

Price €12.18
#25 90451-155-000

WASHER, 14MM

Price €4.52
#26 91008-374-003

BEARING, BALL, 16005 (NTN)

Price €38.30
#27 91056-HP5-601

BEARING, NEEDLE, 12X18X12

Price €18.31
#28 91104-KT7-000

DOWEL PIN, 8X315

Price €8.08
#29 91106-MCF-003

BEARING, NEEDLE, 14X22X16

Price €30.34
#30 91203-KK3-830

OIL SEAL, 14X22X5

Price €4.13
#31 94510-14000

CIRCLIP, EXTERNAL, 14MM

Price €0.86
#32 95701-0604500

BOLT, FLANGE, 6X45

Price €1.62
#33 96220-40080

ROLLER, 4X8

Price €0.48
