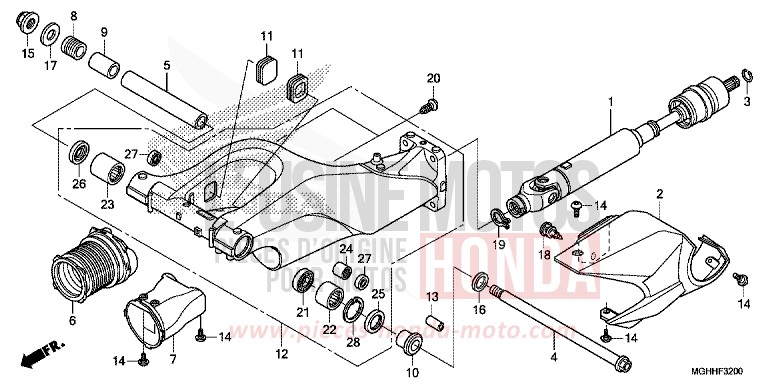

SWINGARM for VFR1200X Dual Clutch CANDY PROMINENCE RED (R342B) from 2017

SWINGARM for VFR1200X Dual Clutch CANDY PROMINENCE RED (R342B) from 2017
Reference
Product name
#1 40200-MGE-023 i

ASSY. SHAFT OF TRANSMISSION

Price €2,151.38
#2 41351-MGE-000

COVER OF PINION FINAL

Price €121.34
#3 44319-SC2-003

COLLARS OF CLAMP, 24X16

Price €4.94
#4 52101-MGE-000

BOLT, PIVOT OF ARM SWINGARM

Price €155.12
#5 52102-MGE-000

RING, PIVOT OF ARM SWINGARM

Price €55.79
#6 52104-MGE-000

CONNECTOR BOOT

Price €65.98
#7 52105-MGE-000

COVER SHAFT OF TRANSMISSION

Price €77.39
#8 52109-MGE-000

BOLT OF ADJUSTMENT OF PIVOT

Price €57.46
#9 52143-MGE-000

COLLET, DISTANCE OF CENTRE OF ROTATION, D

Price €50.58
#10 52144-MFL-000

COLLET, DISTANCE OF CENTRE OF ROTATION, R.

Price €43.96
#11 52175-MGE-000

PASSE-WIRES, ARM SWINGARM

Price €14.45
#12 52200-MGH-D50

ASSY. SECONDARY OF ARM SWINGARM

Price €2,400.50
#13 52463-MBT-D20

BAND OF ARM D'AMORTESSEUR

Price €27.48
#14 90113-MGE-000

BOLT SPECIAL, 6X12

Price €8.96
#15 90306-MFL-D31

NUT U, 22MM

Price €49.33
#16 90501-MGE-000

WASHER, 26X41X3

Price €15.00
#17 90502-MGE-000

WASHER, 222X44X3

Price €15.84
#18 90652-MGE-003

RIVET, POUSSER-TIRER

Price €8.99
#19 90654-MGE-000

CIRCLIP SPECIAL, 26MM

Price €18.26
#20 90656-MGE-003

STOPFEN, LOCH

Price €6.37
#21 91053-MCJ-003

RADIAL BALL BEARING, 6905

Price €35.44
#22 91053-MCJ-751

NEEDLE BEARING, 32X42X20

Price €90.20
#23 91071-MCJ-003

NEEDLE BEARING, 32X42X37

Price €52.12
#24 91072-MY1-005

NEEDLE BEARING, 20X26X20

Price €38.57
#25 91252-MCF-003

COVER-POUSSIERE, 32X45X5

Price €11.64
#26 91253-MCF-003

COVER-POUSSIERE, 32X42X6

Price €10.98
#27 91254-KS6-003 i

COVER-POUSSIERE, 20X26X4.5 (ARAI)

Price €10.64
#28 94520-45000

CIRCLIP INNER, 45MM

Price €2.45
