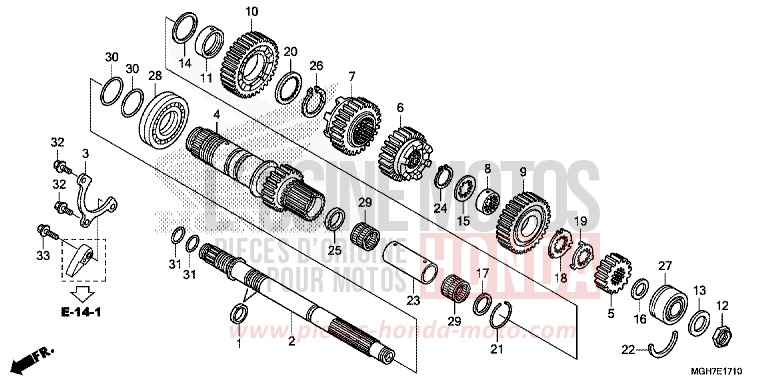

TRANSMISSION (VFR1200XD/XDA/XDL/XDS) (MAINSHAFT) for VFR1200X PEARL COSMIC BLACK (NHA64) from 2015

TRANSMISSION (VFR1200XD/XDA/XDL/XDS) (MAINSHAFT) for VFR1200X PEARL COSMIC BLACK (NHA64) from 2015
Reference
Product name
#1 22815-MGE-D01

RING, SEAL, 28MM

Price €7.88
#2 23210-MGE-D00

MAINSHAFT COMP, INNER

Price €272.51
#3 23213-MGE-000

PLATE, BEARING SETTING

Price €12.59
#4 23231-MGE-J00

MAINSHAFT, OUTER (20T)

Price €347.76
#5 23411-MGH-D20

GEAR, MAINSHAFT FIRST (16T)

Price €133.79
#6 23451-MGH-D20

GEAR, MAINSHAFT THIRD (23T)

Price €202.99
#7 23471-MGH-D20

GEAR, MAINSHAFT FOURTH (28T)

Price €209.80
#8 23482-MR7-000

COLLAR, SPLINE, 28X135

Price €22.13
#9 23491-MGH-D20

GEAR, MAINSHAFT FIFTH (30T)

Price €205.39
#10 23511-MGH-D20

GEAR, MAINSHAFT SIXTH (35T)

Price €205.39
#11 23512-MGE-D00

COLLAR, 40X43X125

Price €24.23
#12 90231-HN8-A60

NUT, LOCK, 22MM

Price €9.70
#13 90401-MGE-D00

WASHER, 22X38X25

Price €12.82
#14 90411-MGE-D00

WASHER, 402X51X1

Price €21.05
#15 90452-MR7-000

WASHER, SPLINE, 28X34X15

Price €5.57
#16 90455-ML7-000

WASHER B, THRUST, 22MM (BLUE)

Price €8.36
#17 90463-MGE-D00

WASHER, 285X32X15

Price €16.45
#18 90463-MR7-000

WASHER, SPLINE, 28MM

Price €10.72
#19 90464-MR7-000

WASHER, LOCK, 28MM

Price €10.57
#20 90493-MGE-D00

WASHER, SPLINE, 40MM

Price €16.51
#21 90601-MGE-D00

CLIP, 332MM

Price €12.25
#22 90602-MGE-000

SET RING, 48MM

Price €12.96
#23 90603-MGE-D00

COLLAR, NEEDLE BEARING

Price €35.14
#24 90603-MN4-000

CIRCLIP, 28MM

Price €7.90
#25 90604-MGE-D00

COLLAR B, NEEDLE BEARING

Price €15.96
#26 90605-MGE-D00

CIRCLIP, 40MM

Price €14.48
#27 91002-MGE-003

BEARING, SPECIAL BALL, 5204S

Price €38.30
#28 91012-MGE-D01

BEARING SET, RADIAL BALL

Price €38.30
#29 91021-ML3-003

BEARING, NEEDLE, 28X32X272 (THOMPSON)

Price €35.26
#30 91305-PY4-000

O-RING, 352X19

Price €3.44
#31 91306-MGE-D01

O-RING, 233X19

Price €5.52
#32 95701-0602000

BOLT, FLANGE, 6X20

Price €1.06
#33 95801-0602800

BOLT, FLANGE, 6X28

Price €1.32
