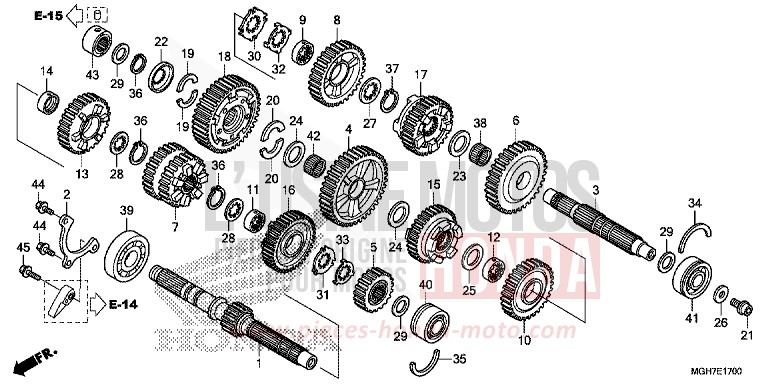

TRANSMISSION (VFR1200X/XA/XL) for VFR1200X MAT PEARL GLARE WHITE (NHB54) from 2015

TRANSMISSION (VFR1200X/XA/XL) for VFR1200X MAT PEARL GLARE WHITE (NHB54) from 2015
Reference
Product name
#1 23210-MGE-010

MAINSHAFT COMP (15T)

Price €204.66
#2 23213-MGE-000

PLATE, BEARING SETTING

Price €12.59
#3 23221-MGE-010

COUNTERSHAFT

Price €177.32
#4 23421-MGE-010

GEAR, COUNTERSHAFT FIRST (39T)

Price €285.95
#5 23431-MGE-700

GEAR, MAINSHAFT SECOND (20T)

Price €174.76
#6 23441-MGE-700

GEAR, COUNTERSHAFT SECOND (32T)

Price €245.47
#7 23451-MGH-640

GEAR, MAINSHAFT THIRD &amp FOURTH (23T/26T)

Price €305.76
#8 23461-MGH-640

GEAR, COUNTERSHAFT THIRD (29T)

Price €253.10
#9 23462-MGE-000

COLLAR, SPLINE, 30X12

Price €38.03
#10 23481-MGH-640

GEAR, COUNTERSHAFT FOURTH (28T)

Price €242.86
#11 23482-MCJ-000

COLLAR, SPLINE, 28X16

Price €36.48
#12 23482-MGE-000

COLLAR, 30X33X12

Price €24.89
#13 23491-MGH-640

GEAR, MAINSHAFT FIFTH (26T)

Price €249.68
#14 23495-MM5-000

COLLAR, 28X13

Price €22.10
#15 23501-MGH-640

GEAR, COUNTERSHAFT FIFTH (25T)

Price €284.08
#16 23511-MGH-640

GEAR, MAINSHAFT SIXTH (39T)

Price €251.96
#17 23521-MGH-640

GEAR, COUNTERSHAFT SIXTH (35T)

Price €278.62
#18 23530-MGH-640

GEAR COMP, FINAL DRIVE (39T)

Price €460.19
#19 23545-MGE-000

COTTER, COUNTERSHAFT

Price €12.98
#20 23546-MGE-010

COTTER B, COUNTERSHAFT

Price €12.98
#21 90037-ME9-000

BOLT, SPECIAL, 10MM

Price €8.89
#22 90402-MGE-010

RETAINER, COUNTERSHAFT

Price €12.96
#23 90407-415-000

WASHER, THRUST, 26MM

Price €8.33
#24 90409-MGE-000

WASHER, 306X40X1

Price €9.18
#25 90410-MGE-000

WASHER, 302X36X15

Price €9.80
#26 90412-MGE-000

WASHER, 105X318X32

Price €10.67
#27 90452-MAT-000

WASHER, SPLINE, 30X36X15

Price €5.65
#28 90452-MR7-000

WASHER, SPLINE, 28X34X15

Price €5.57
#29 90455-ML7-000

WASHER B, THRUST, 22MM (BLUE)

Price €8.36
#30 90463-MAT-000

WASHER, SPLINE, 30MM

Price €7.24
#31 90463-MR7-000

WASHER, SPLINE, 28MM

Price €10.72
#32 90464-MAT-000

WASHER, LOCK, 30MM

Price €10.07
#33 90464-MR7-000

WASHER, LOCK, 28MM

Price €10.57
#34 90601-MA6-000

RING, BEARING SETTING, 56MM

Price €5.69
#35 90602-MGE-000

SET RING, 48MM

Price €12.96
#36 90603-MN4-000

CIRCLIP, 28MM

Price €7.90
#37 90604-MM5-000

CIRCLIP, 30MM

Price €9.89
#38 91001-MCH-003

BEARING, NEEDLE, 26X30X13

Price €32.92
#39 91001-MGE-003

BEARING, SPECIAL BALL, 28X76X18

Price €38.30
#40 91002-MGE-003

BEARING, SPECIAL BALL, 5204S

Price €38.30
#41 91003-MGE-003

BEARING, SPECIAL BALL, 22X56X215

Price €38.30
#42 91006-MGE-003

BEARING, NEEDLE, 30X35X13

Price €35.17
#43 91025-MBT-F21

BEARING, NEEDLE, 22X38X193

Price €64.85
#44 95701-0602000

BOLT, FLANGE, 6X20

Price €1.06
#45 95801-0602800

BOLT, FLANGE, 6X28

Price €1.32
