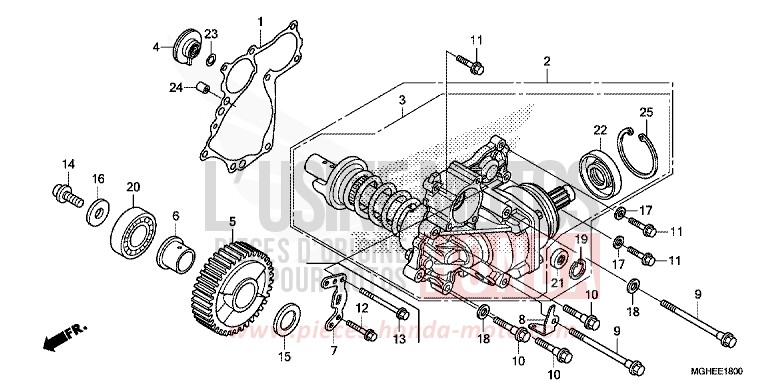

SIDE GEAR CASE for VFR1200X CANDY PROMINENCE RED (R342) from 2014

SIDE GEAR CASE for VFR1200X CANDY PROMINENCE RED (R342) from 2014
Reference
Product name
#1 11663-MGE-003

GASKET, SIDE GEAR CASE

Price €28.50
#2 21100-MGE-700

CASE ASSY, SIDE GEAR

Price €2,217.46
#4 23218-MGE-010

COLLAR, OIL GUIDE

Price €34.40
#5 23541-MGE-000

GEAR, FINAL DRIVEN (37T)

Price €266.18
#6 23733-MGE-000

COLLAR, 25X30X286

Price €43.40
#8 32156-MGH-640

STAY, HARNESS CLIP

Price €17.18
#9 90005-MGE-010

BOLT, FLANGE, 8X95

Price €12.00
#10 90006-MGE-010

BOLT, UBS, 8X40

Price €12.44
#11 90016-GHB-680

BOLT, FLANGE, 6X28

Price €7.06
#14 90037-ME9-000

BOLT, SPECIAL, 10MM

Price €8.89
#15 90403-MGE-000

WASHER, SPECIAL, 25X404X12

Price €12.82
#16 90414-MGE-D00

WASHER, 105X36X4

Price €11.16
#17 90441-706-000

WASHER, SEALING, 6MM

Price €1.00
#18 90442-028-000

WASHER, SEALING, 8MM

Price €3.34
#19 90603-MGE-000

CIRCLIP, INTERNAL, 26MM

Price €8.27
#20 91005-MGE-003

BEARING, BALL, 6305

Price €38.30
#21 91204-MB0-013

OIL SEAL, 8X25X8 (ARAI)

Price €7.16
#22 91205-MGE-003

OIL SEAL, 28X66X8

Price €19.07
#23 91309-PJ7-010

O-RING, 115X35

Price €5.10
#24 94302-10120

DOWEL PIN, 10X12

Price €2.72
#25 94520-65120

CIRCLIP, INTERNAL, 65MM

Price €3.77
