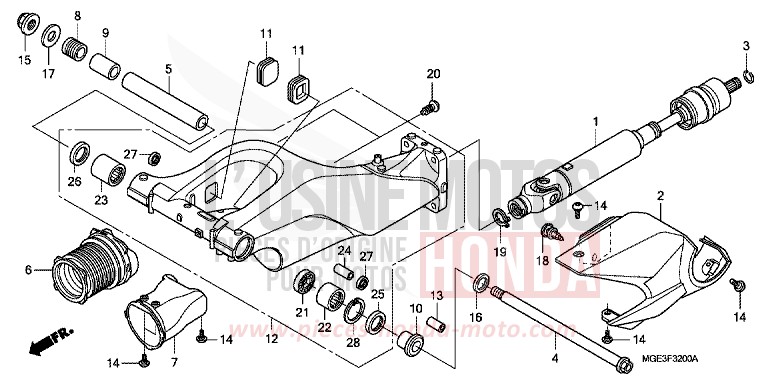

SWINGARM for VFR1200F Dual Clutch TITANIUM BLADE METALLIC (YR316) from 2013

SWINGARM for VFR1200F Dual Clutch TITANIUM BLADE METALLIC (YR316) from 2013
Reference
Product name
#1 40200-MGE-013

SHAFT ASSY, PROPELLER

Price €2,222.40
#2 41351-MGE-000

COVER, FINAL GEAR

Price €116.81
#3 44319-SC2-003

SET RING, 24X16

Price €4.74
#4 52101-MGE-000

BOLT, SWINGARM PIVOT

Price €78.01
#5 52102-MGE-000

COLLAR, SWINGARM PIVOT

Price €42.48
#6 52104-MGE-000

BOOT, JOINT

Price €50.46
#7 52105-MGE-000

COVER, PROPELLER SHAFT

Price €74.23
#8 52109-MGE-000

BOLT, PIVOT ADJUSTING

Price €31.81
#9 52143-MGE-000

COLLAR, R PIVOT DISTANCE

Price €38.39
#10 52144-MFL-000

COLLAR, R PIVOT DISTANCE (LEFT HAND SIDE)

Price €34.91
#11 52175-MGE-000

GROMMET, SWINGARM

Price €14.16
#12 52200-MGE-010

SWINGARM SUB ASSY

Price €1,902.20
#13 52463-MBT-D20

COLLAR, CUSHION ARM

Price €14.72
#14 90113-MGE-000

BOLT, SPECIAL, 6X12

Price €8.08
#15 90306-MFL-D31

NUT, U, 22MM

Price €45.25
#16 90501-MGE-000

WASHER, 26X41X3

Price €11.77
#17 90502-MGE-000

WASHER, 222X44X3

Price €12.18
#18 90652-MGE-003

RIVET, PUSH PULL

Price €9.24
#19 90654-MGE-000

CIRCLIP, SPECIAL, 26MM

Price €13.12
#20 90656-MGE-003

PLUG, HOLE

Price €4.78
#21 91053-MCJ-003

BEARING, RADIAL BALL, 6905

Price €38.30
#22 91053-MCJ-751

BEARING, NEEDLE, 32X42X20

Price €74.16
#23 91071-MCJ-003

BEARING, NEEDLE, 32X42X37

Price €44.15
#24 91072-MY1-005

BEARING, NEEDLE, 20X26X20

Price €38.51
#25 91252-MCF-003

DUST SEAL, 32X45X5

Price €9.72
#26 91253-MCF-003

DUST SEAL, 32X42X6

Price €10.14
#27 91254-KS6-003

DUST SEAL, 20X26X45 (ARAI)

Price €6.50
#28 94520-45000

CIRCLIP, INTERNAL, 45MM

Price €2.40
