TRANSMISSION (VFR1200F) 🏍️ VFR1200F
GEARSHIFT DRUM (VFR1200F) 🏍️ VFR1200F

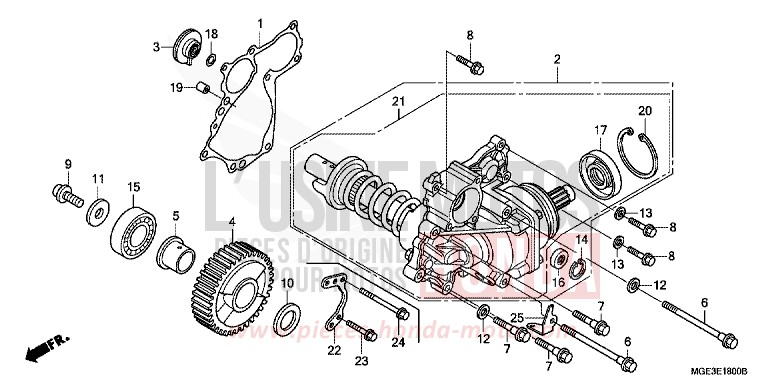

SIDE GEAR CASE for VFR1200F DARKNESS BLACK METALLIC (NH463) from 2011

SIDE GEAR CASE for VFR1200F DARKNESS BLACK METALLIC (NH463) from 2011
Reference
Product name
#1 11663-MGE-003

GASKET OF BOX OF PINION SIDE

Price €37.20
#2 21100-MGE-060 i

CASE ASSY, SIDE GEAR

Price €3,008.42
#2 21100-MGE-700 i

ASSY. BOX OF PINION SIDE

Price €3,008.42
#3 23218-MGE-010 i

RING, GUIDE OIL

Price €64.04
#4 23541-MGE-000

PINION DRIVEN FINAL (37T)

Price €276.11
#5 23733-MGE-000

BAND, 25X30X286

Price €84.74
#6 90005-MGE-010 i

FLANGE BOLT, 8X95

Price €13.75
#7 90006-MGE-010 i

BOLT UBS, 8X40

Price €14.75
#8 90016-GHB-680

FLANGE BOLT, 6X28

Price €6.58
#9 90037-ME9-000

BOLT SPECIAL, 10MM

Price €10.36
#10 90403-MGE-000

SPECIAL WASHER, 25X404X12

Price €17.15
#11 90405-MFA-D00

WASHER, 10.5X31.8

Price €13.43
#11 90414-MGE-D00

WASHER, 10.5X36X4

Price €13.06
#12 90442-028-000

WASHER SEALING, 8MM

Price €5.71
#13 90441-706-000

SEALING WASHER, 6MM

Price €1.02
#14 90603-MGE-000

CIRCLIP INNER, 26MM

Price €8.05
#15 91005-MGE-003

BALL BEARING, 6305

Price €56.68
#16 91204-MB0-013 i

OIL SEAL, 8X25X8 (ARAI)

Price €6.32
#17 91205-MGE-003

GASKET SEALING OIL, 28X66X8

Price €20.63
#18 91309-PJ7-010

O-RING, 115X35

Price €4.96
#19 94302-10120

STUD, 10X12

Price €2.78
#20 94520-65120

CIRCLIP INNER, 65MM

Price €3.84
