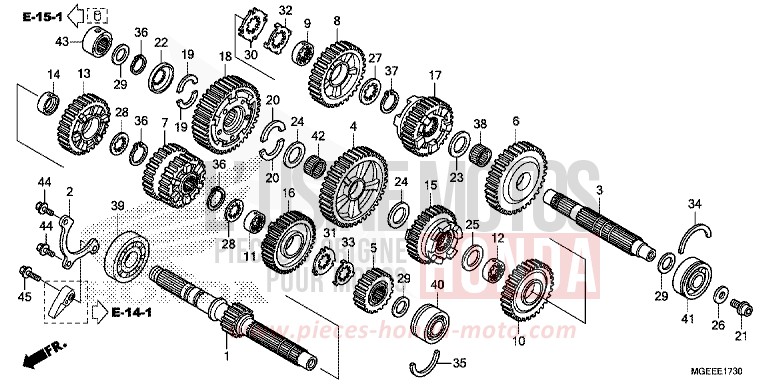

TRANSMISSION (VFR1200F) for VFR1200F CANDY PROMINENCE RED (R342) from 2015

TRANSMISSION (VFR1200F) for VFR1200F CANDY PROMINENCE RED (R342) from 2015
Reference
Product name
#1 23210-MGE-010 i

MAINSHAFT COMP (15T)

Price €406.99
#2 23213-MGE-000

PLATE, BEARING SETTING

Price €16.56
#3 23221-MGE-010

COUNTERSHAFT

Price €357.23
#4 23421-MGE-010

GEAR, COUNTERSHAFT FIRST (39T)

Price €272.48
#5 23431-MGE-000

GEAR, MAINSHAFT SECOND (19T)

Price €145.43
#6 23441-MGE-010 i

GEAR, COUNTERSHAFT SECOND (33T)

Price €271.32
#7 23451-MGE-010 i

GEAR, MAINSHAFT THIRD &amp FOURTH (22T/25T)

Price €321.95
#8 23461-MGE-000

GEAR, COUNTERSHAFT THIRD (30T)

Price €271.32
#9 23462-MGE-000

COLLAR, SPLINE, 30X12

Price €39.49
#10 23481-MGE-000

GEAR, COUNTERSHAFT FOURTH (29T)

Price €260.88
#11 23482-MCJ-000

COLLAR, SPLINE, 28X16

Price €40.99
#12 23482-MGE-000

COLLAR, 30X33X12

Price €31.57
#13 23491-MGE-000

GEAR, MAINSHAFT FIFTH (31T)

Price €275.53
#14 23495-MM5-000 i

COLLAR, 28X13

Price €29.59
#15 23501-MGE-010

GEAR, COUNTERSHAFT FIFTH (32T)

Price €300.91
#16 23511-MGE-010 i

GEAR, MAINSHAFT SIXTH (33T)

Price €275.53
#17 23521-MGE-010 i

GEAR, COUNTERSHAFT SIXTH (31T)

Price €300.91
#18 23530-MGH-640

GEAR COMP, FINAL DRIVE (39T)

Price €597.31
#19 23545-MGE-000

COTTER, COUNTERSHAFT

Price €17.39
#20 23546-MGE-010

COTTER B, COUNTERSHAFT

Price €17.39
#21 90037-ME9-000

BOLT, SPECIAL, 10MM

Price €10.36
#22 90402-MGE-010

RETAINER, COUNTERSHAFT

Price €18.04
#23 90407-415-000 i

WASHER, THRUST, 26MM

Price €13.06
#24 90409-MGE-000

WASHER, 306X40X1

Price €10.57
#25 90410-MGE-000

WASHER, 302X36X15

Price €11.70
#26 90412-MGE-000

WASHER, 105X318X32

Price €12.56
#27 90452-MAT-000

WASHER, SPLINE, 30X36X15

Price €6.26
#28 90452-MR7-000

WASHER, SPLINE, 28X34X15

Price €7.61
#29 90455-ML7-000 i

WASHER B, THRUST, 22MM (BLUE)

Price €7.87
#30 90463-MAT-000

WASHER, SPLINE, 30MM

Price €7.87
#31 90463-MR7-000

WASHER, SPLINE, 28MM

Price €14.40
#32 90464-MAT-000

WASHER, LOCK, 30MM

Price €11.33
#33 90464-MR7-000

WASHER, LOCK, 28MM

Price €14.40
#34 90601-MA6-000

RING, BEARING SETTING, 56MM

Price €7.91
#35 90602-MGE-000

SET RING, 48MM

Price €18.04
#36 90603-MN4-000 i

CIRCLIP, 28MM

Price €7.63
#37 90604-MM5-000

CIRCLIP, 30MM

Price €10.96
#38 91001-MCH-003 i

BEARING, NEEDLE, 26X30X13

Price €34.98
#39 91001-MGE-003

BEARING, SPECIAL BALL, 28X76X18

Price €65.78
#40 91002-MGE-003 i

BEARING, SPECIAL BALL, 5204S

Price €52.75
#41 91003-MGE-003

BEARING, SPECIAL BALL, 22X56X215

Price €66.84
#42 91006-MGE-003

BEARING, NEEDLE, 30X35X13

Price €38.44
#43 91025-MBT-F21

BEARING, NEEDLE, 22X38X193

Price €78.64
#44 95701-0602000 i

BOLT, FLANGE, 6X20

Price €1.08
#45 95801-0602800 i

BOLT, FLANGE, 6X28

Price €1.34
