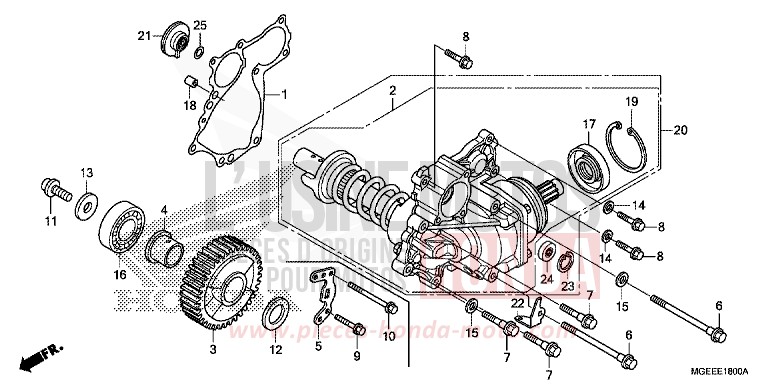

SIDE GEAR CASE for VFR1200F CANDY PROMINENCE RED (R342) from 2015

SIDE GEAR CASE for VFR1200F CANDY PROMINENCE RED (R342) from 2015
Reference
Product name
#1 11663-MGE-003

GASKET, SIDE GEAR CASE

Price €37.20
#2 21100-MGE-D00

CASE ASSY, SIDE GEAR

Price €3,008.42
#3 23541-MGE-D00

GEAR, FINAL DRIVEN (39T)

Price €276.11
#4 23733-MGE-000

COLLAR, 25X30X286

Price €84.74
#5 32156-MGE-D01

STAY, HARNESS CLIP

Price €17.53
#6 90005-MGE-010 i

BOLT, FLANGE, 8X95

Price €13.75
#7 90006-MGE-010 i

BOLT, UBS, 8X40

Price €14.75
#8 90016-GHB-680

BOLT, FLANGE, 6X28

Price €6.58
#9 90016-GHB-700

BOLT, FLANGE, 6X35

Price €6.58
#10 90016-GHB-760

BOLT, FLANGE, 6X65

Price €7.31
#11 90037-ME9-000

BOLT, SPECIAL, 10MM

Price €10.36
#12 90403-MGE-000

WASHER, SPECIAL, 25X404X12

Price €17.15
#13 90414-MGE-D00

WASHER, 105X36X4

Price €13.06
#14 90441-706-000

WASHER, SEALING, 6MM

Price €1.02
#15 90442-028-000

WASHER, SEALING, 8MM

Price €5.71
#16 91005-MGE-003

BEARING, BALL, 6305

Price €56.68
#17 91205-MGE-003

OIL SEAL, 28X66X8

Price €20.63
#18 94302-10120

DOWEL PIN, 10X12

Price €2.78
#19 94520-65120

CIRCLIP, INTERNAL, 65MM

Price €3.84
