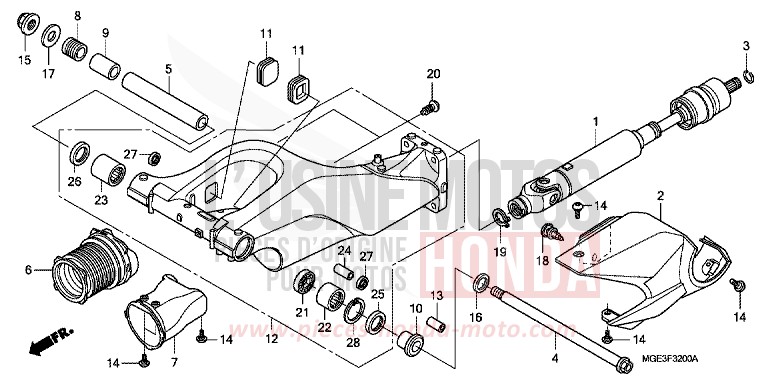

SWINGARM for VFR1200F CANDY PROMINENCE RED (R342) from 2011

SWINGARM for VFR1200F CANDY PROMINENCE RED (R342) from 2011
Reference
Product name
#1 40200-MGE-013 i

SHAFT ASSY, PROPELLER

Price €2,151.38
#2 41351-MGE-000

COVER, FINAL GEAR

Price €121.34
#3 44319-SC2-003

SET RING, 24X16

Price €4.94
#4 52101-MGE-000

BOLT, SWINGARM PIVOT

Price €155.12
#5 52102-MGE-000

COLLAR, SWINGARM PIVOT

Price €55.79
#6 52104-MGE-000

BOOT, JOINT

Price €65.98
#7 52105-MGE-000

COVER, PROPELLER SHAFT

Price €77.39
#8 52109-MGE-000

BOLT, PIVOT ADJUSTING

Price €57.46
#9 52143-MGE-000

COLLAR, R PIVOT DISTANCE

Price €50.58
#10 52144-MFL-000

COLLAR, R PIVOT DISTANCE (LEFT HAND SIDE)

Price €43.96
#11 52175-MGE-000

GROMMET, SWINGARM

Price €14.45
#12 52200-MGE-010 i

SWINGARM SUB ASSY

Price €2,417.99
#13 52463-MBT-D20

COLLAR, CUSHION ARM

Price €27.48
#14 90113-MGE-000

BOLT, SPECIAL, 6X12

Price €8.96
#15 90306-MFL-D31

NUT, U, 22MM

Price €49.33
#16 90501-MGE-000

WASHER, 26X41X3

Price €15.00
#17 90502-MGE-000

WASHER, 222X44X3

Price €15.84
#18 90652-MGE-003

RIVET, PUSH PULL

Price €8.99
#19 90654-MGE-000

CIRCLIP, SPECIAL, 26MM

Price €18.26
#20 90656-MGE-003

PLUG, HOLE

Price €6.37
#21 91053-MCJ-003

BEARING, RADIAL BALL, 6905

Price €35.44
#22 91053-MCJ-751

BEARING, NEEDLE, 32X42X20

Price €90.20
#23 91071-MCJ-003

BEARING, NEEDLE, 32X42X37

Price €52.12
#24 91072-MY1-005

BEARING, NEEDLE, 20X26X20

Price €38.57
#25 91252-MCF-003

DUST SEAL, 32X45X5

Price €11.64
#26 91253-MCF-003

DUST SEAL, 32X42X6

Price €10.98
#27 91254-KS6-003 i

DUST SEAL, 20X26X45 (ARAI)

Price €10.64
#28 94520-45000

CIRCLIP, INTERNAL, 45MM

Price €2.45
