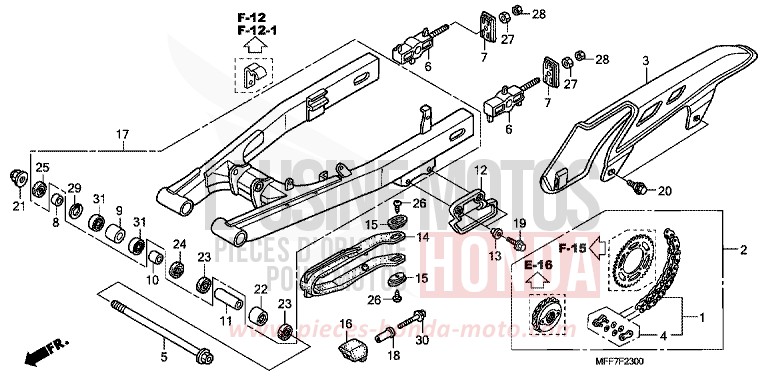

SWINGARM for TRANSALP ABS CARNELIAN RED METALLIC (R296) from 2009

SWINGARM for TRANSALP ABS CARNELIAN RED METALLIC (R296) from 2009
Reference
Product name
#1 06405-MY5-P00 i

CHAIN SET, DRIVE (DAIDO) (DID525V8-112L-120L)...

Price €327.07
#1 06405-MY5-P10 i

CHAIN SET, DRIVE (RK EXCEL) (RK525 112-120L)

Price €327.07
#2 06406-MFF-P00 i

CHAIN KIT, DRIVE (525-15&amp47T)

Price €233.78
#3 40510-MY1-000

CASE, DRIVE CHAIN

Price €52.31
#4 40535-MY5-306 i

JOINT SET, DRIVE CHAIN (RK EXCEL)

Price €23.44
#4 40545-MY5-G31

JOINT, DRIVE CHAIN (DAIDO)

Price €27.72
#5 52101-MFF-D00

BOLT, SWINGARM PIVOT

Price €100.91
#6 52120-MCB-610

COLLAR COMP, CHAIN TENSIONER

Price €27.05
#7 52121-MAN-620

PLATE, CHAIN TENSIONER

Price €11.77
#8 52142-KFK-000

COLLAR, PIVOT (C)

Price €11.70
#9 52142-MCB-610

COLLAR, CENTER PIVOT DISTANCE

Price €8.14
#10 52143-KFK-000

COLLAR, PIVOT (A)

Price €18.68
#11 52143-MCB-610

COLLAR, L PIVOT DISTANCE

Price €113.72
#12 52156-MAN-620

GUARD, CHAIN

Price €25.33
#13 52159-KB7-000

COLLAR, CHAIN GUARD

Price €11.45
#14 52170-MCB-610 i

SLIDER, CHAIN

Price €41.47
#15 52171-KR6-000 i

WASHER, CHAIN SLIDER

Price €6.13
#16 52181-MM9-000 i

SLIDER, CHAIN LOWER

Price €47.42
#17 52200-MFF-D00ZB

SWINGARM SUB ASSY, RR NH300M (NH300M MUSCULAR...

Price €1,273.70
#18 53209-HA0-000

COLLAR, HANDLE COVER MOUNTING

Price €12.19
#19 90101-MAS-000

BOLT, FLANGE, 6X20

Price €5.21
#20 90114-126-900

BOLT, FLANGE, 6MM

Price €5.46
#21 90305-ME5-003 i

NUT, FLANGE, 16MM

Price €10.28
#22 91071-MT7-003

BEARING, NEEDLE (NTN)

Price €23.69
#23 91202-MAL-601

DUST SEAL, 25X33X4

Price €7.54
#24 91203-GC8-003 i

OIL SEAL, 24X31X35

Price €11.53
#25 91214-MAL-601

DUST SEAL, 23X35X5

Price €8.05
#26 93901-25080

SCREW, TAPPING, 5X8

Price €0.64
#27 94001-080000S i

NUT, HEX, 8MM

Price €1.19
#28 94030-08000 i

NUT, HEX, 8MM

Price €0.88
#29 94520-35000

CIRCLIP, INTERNAL, 35MM

Price €1.74
#30 95701-0604000 i

BOLT, FLANGE, 6X40

Price €1.25
#31 96100-6003010

BEARING, RADIAL BALL, 6003

Price €20.20
