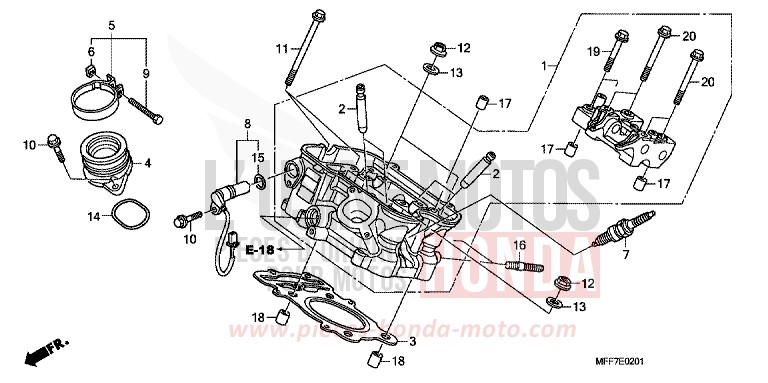

REAR CYLINDER HEAD for TRANSALP ABS CARNELIAN RED METALLIC (R296) from 2009

REAR CYLINDER HEAD for TRANSALP ABS CARNELIAN RED METALLIC (R296) from 2009
Reference
Product name
#1 12020-MFF-D00

HEAD ASSY, RR CYLINDER

Price €1,742.75
#2 12204-MEW-P00

GUIDE, VALVE (OS)

Price €41.10
#3 12251-MEW-921

GASKET, CYLINDER HEAD

Price €67.21
#4 16210-MEW-920

INSULATOR COMP, THROTTLE BODY

Price €49.81
#5 16218-MAT-000

BAND B, INSULATOR

Price €14.74
#6 16222-MV4-300

NUT, SQUARE, 5MM

Price €3.23
#7 31916-KRM-841

PLUG, SPARK (CPR8EA-9) (NGK)

Price €16.49
#7 31928-MFF-D01

PLUG, SPARK (U24EPR9) (DENSO)

Price €24.07
#8 36140-MFF-D01

PULSER ASSY, CAM

Price €242.29
#9 90005-MM4-000

BOLT, RECESSED, 5X32

Price €3.35
#10 90006-GHB-630

BOLT, FLANGE, 6X16 (NSHF)

Price €4.12
#11 90006-MM5-640

BOLT, FLANGE, 8X135

Price €8.89
#12 90204-634-000

NUT, FLANGE, 10MM

Price €6.38
#13 90410-HC4-000

WASHER, 10MM

Price €4.80
#14 91303-397-000

O-RING, 45X25

Price €7.75
#15 91309-PX4-003

O-RING, 16X21 (NOK)

Price €5.41
#16 92900-080220E

BOLT, STUD, 8X22

Price €2.93
#17 94301-10160

DOWEL PIN, 10X16

Price €2.33
#18 94301-14200

DOWEL PIN, 14X20

Price €2.04
#19 95701-0805000

BOLT, FLANGE, 8X50

Price €2.81
#20 95701-0807000

BOLT, FLANGE, 8X70

Price €2.02
