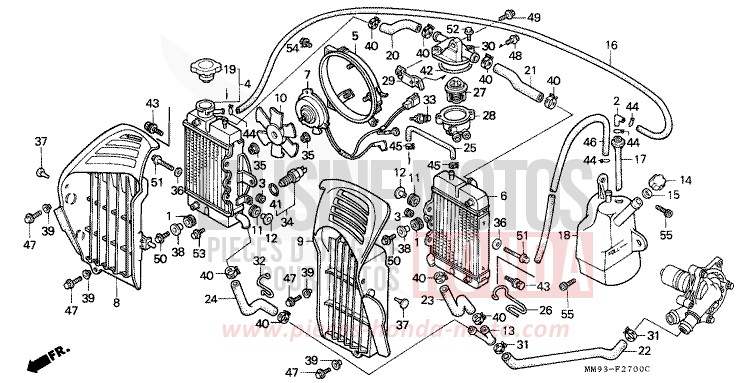

RADIATOR for TRANSALP SPARKLING SILVER METALLIC (NH295A) from 1991

RADIATOR for TRANSALP SPARKLING SILVER METALLIC (NH295A) from 1991
Reference
Product name
#49 95701-0601800 i

FLANGE BOLT, 6X18

Price €1.15
#13 19069-MM9-000

CONNECTOR OF HOSE WATER

Price €28.93
Contact us
#40 19504-KY1-003 i

WATER HOSE CLIP, 25MM

Price €17.80
#31 19505-ML3-770

WATER HOSE CLIP

Price €18.26
#44 95002-02120

CLAMP, TUBE (B12)

Price €1.08
#45 95002-4120008

PIPE CLIP (D12)

Price €1.94
#50 95701-0602007 i

FLANGE BOLT, 6X20

Price €1.15
#1 17245-107-010 i

MOUNTING RUBBER, AIR CLEANER-CASE

Price €10.15
#2 17359-419-670

BREATHER PIPE CONNECTOR

Price €6.80
#3 18624-634-670

WASHER OF DEVIATION AIR

Price €4.76
Contact us
#4 19011-MM9-003 i

RADIATOR COMP D (TOYO)

Contact us
#5 19013-MS6-620

NOZZLE OF FAN COMP

Contact us
#6 19020-MM9-003

RADIATOR COMP G (TOYO)

Price €313.02
Contact us
#7 19030-MS8-010

ASSY. ENGINE OF FAN

Contact us
#7 19030-MV1-003

ASSY. ENGINE OF FAN

Contact us
#8 19032-MM9-000 i

CARANDRE OF RADIATOR D

Price €32.21
#9 19035-MM9-000 i

CARANDRE OF RADIATOR G

Price €64.57
#10 19040-MF5-751 i

FAN OF REFROIDISSEMENT (T.WHEEL)

Price €107.16
#11 19051-KA3-830

MOUNTING RUBBER, RADIATOR

Price €9.20
#12 19052-MN8-000 i

RADIATOR MOUNTING BAND

Price €7.48
#14 19104-ME9-000

PLUG OF TANK OF RESERVE

Price €20.00
#15 19107-MG8-000

GASKET OF TANK OF RESERVE

Price €5.45
#16 19107-MM9-000 i

PIPE OF TROP-PLEIN

Price €18.91
Contact us
#17 19108-MB0-000 i

PIPE OF NIVEAU

Price €19.76
#18 19110-MM9-000 i

TANK OF RESERVE

Price €69.52
Contact us
#19 19111-MM9-000 i

ASSY. CAP

Price €76.93
#20 19222-MM9-000

HOSE WATER (5)

Price €7.39
Contact us
#21 19223-MM9-000

HOSE WATER (6)

Price €13.62
Contact us
#22 19231-MM9-000

HOSE WATER (7)

Price €18.34
Contact us
#23 19232-MM9-000

PIPE, WATER G

Price €9.18
Contact us
#24 19234-MS6-620

PIPE, WATER D (NO8)

Contact us
#25 19235-MM9-000

TUBE OF CONNECTOR OF RADIATOR

Price €11.52
Contact us
#26 19241-MM9-000

CIRCLIP OF RADIATOR G

Price €4.66
Contact us
#27 19300-KE8-000

ASSY. THERMOSTAT

Price €135.86
#28 19311-MM9-000

HOUSING OF THERMOSTAT

Contact us
#29 19312-MS8-010

SUPPORT OF THERMOSTAT

Price €4.68
Contact us
#30 19315-MM9-000

COVER OF THERMOSTAT

Contact us
#32 19515-MS6-620

WATER HOSE CLIP

Price €4.66
Contact us
#33 37750-PC1-004 i

THERMO-UNIT (DENSO)

Price €79.03
#34 37760-MR1-003 i

ASSY. OF SWITCH, THERMIQUE

Price €153.10
#35 90315-MK3-003

NUT DENTELE, 5MM

Price €5.57
#37 90499-SB0-000

STOPPER A

Contact us
#38 90501-MA3-770 i

BAND, 6.2X12

Price €11.51
#39 90556-MB4-000

WASHER OF COVER SIDE FRONT

Price €6.54
#41 91307-611-000

O-RING, 13.5X1.4

Price €4.96
#42 91311-KE8-000 i

O-RING, 47.5X2

Price €6.18
#43 93404-0602507 i

BOLT WITH WASHER, 6X25

Price €1.25
#46 19108-MM9-000

PIPE OF TANK OF RESERVE

Price €25.31
Contact us
#47 95701-0601207 i

FLANGE BOLT, 6X12

Price €1.15
#48 96001-0601000 i

FLANGE BOLT, 6X10

Price €1.42
#52 96000-0602007 i

FLANGE BOLT, 6X20

Price €1.42
#53 96000-0601000 i

FLANGE BOLT, 6X10

Price €1.42
#54 96000-0601007 i

FLANGE BOLT, 6X10

Price €1.08
#55 96700-0601207 i

BOLT OF SOCKET, 6X12

Price €1.42
