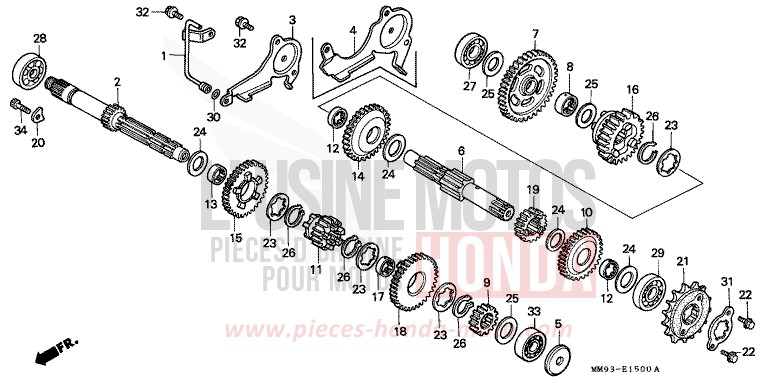

TRANSMISSION for TRANSALP PEARL CRYSTAL WHITE (NH193P) from 1988

TRANSMISSION for TRANSALP PEARL CRYSTAL WHITE (NH193P) from 1988
Reference
Product name
#1 15520-MM9-000

PIPE COMP D'FEED EN OIL OF LA TRANSMISSION

Contact us
#2 23210-MM9-000

SHAFT MAIN COMP (14T)

Contact us
#3 23212-MM9-000

BEARING FIXING PLATE

Contact us
#5 23219-MF5-000

PLATE OF GUIDE D'OIL

Price €10.44
#6 23220-MM9-000

SHAFT OF RENVOI

Contact us
#6 23220-MM9-010

SHAFT OF RENVOI

Contact us
#7 23421-MM9-000

PINION PREMIERE SHAFT OF RENVOI (36T)

Contact us
#8 23422-MB0-000

BAND, 20X118

Contact us
#9 23431-MM9-010

PINION DEUXIEME SHAFT MAIN (18T)

Contact us
#10 23441-MM9-000

PINION DEUXIEME SHAFT OF RENVOI (32T)

Contact us
#11 23451-MM9-010

PINION TR0ISIEME SHAFT MAIN (21T)

Contact us
#12 23455-HA7-670

RING SHAFT OF RENVOI 3EME

Price €41.69
#13 23455-MM9-000

RING, 25X28X15

Price €33.65
#14 23461-MM9-000

PINION TROISIEME SHAFT OF RENVOI (29T)

Contact us
#14 23461-MM9-010

PINION TROISIEME SHAFT OF RENVOI (29T)

Contact us
#15 23471-MM9-000

PINION QUATRIEME SHAFT MAIN (24T)

Contact us
#16 23481-MM9-000

PINION QUATRIEME SHAFT OF RENVOI (27T)

Contact us
#17 23485-MM9-000

RING OF CANNELURE, 28X14

Contact us
#18 23491-MM9-000

PINION CINQUIEME SHAFT MAIN (26T)

Contact us
#19 23501-MM9-000

PINION CINQUIEME SHAFT OF RENVOI (25T)

Contact us
#20 23521-MM9-000

BEARING FIXING PLATE

Contact us
#21 23801-MM9-000 i

PINION OF CONTROL (15T)

Contact us
#21 23801-MM9-010 i

PINION OF CONTROL (15T)

Price €89.03
#22 90118-958-003

FLANGE BOLT, 6X12

Price €7.31
#23 90451-KE8-000

WASHER CANNELEE, 25MM

Price €8.65
#24 90456-MA6-000

WASHER OF STOPPER, 25MM

Price €7.61
#25 90554-700-000

WASHER OF STOPPER, 20MM

Price €1.62
#26 90601-107-000

CIRCLIP, 25MM

Price €7.91
#27 91003-MG2-791 i

RADIAL BALL BEARING, 6204U (TOYO)

Price €23.05
#27 91003-MG2-792 i

RADIAL BALL BEARING, 6204U (KOYO)

Price €23.05
#28 91007-393-003 i

RADIAL BALL BEARING, 6322

Price €39.13
Contact us
#29 91014-969-003 i

RADIAL BALL BEARING, 5205 (NTN)

Price €86.98
#30 91318-ME5-003 i

O-RING, 5.6X1.9 (ARAI)

Price €6.65
#31 95014-91200

PLATE A2 OF FIXING

Price €1.81
#31 23811-MJ8-000

PLATE OF FIXING

Price €6.30
Contact us
#31 23811-MN8-000

PLATE OF FIXING

Price €17.02
#32 95701-0601600 i

FLANGE BOLT, 6X16

Price €1.18
#33 96100-6204000 i

RADIAL BALL BEARING, 6204

Price €22.99
#34 96700-0601200 i

BOLT OF SOCKET, 6X12

Price €1.42
#34 95701-0601200 i

FLANGE BOLT, 6X12

Price €1.15
