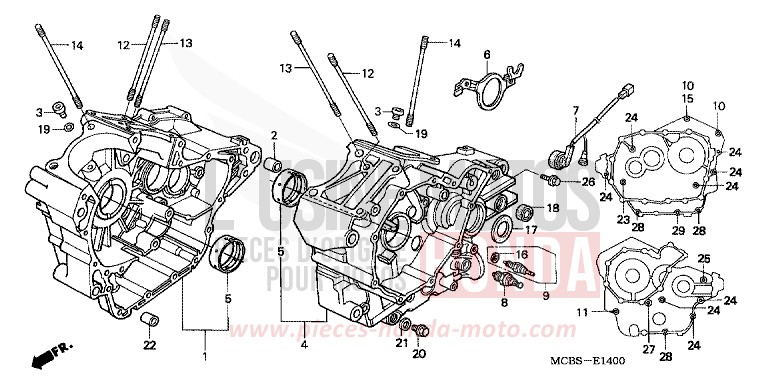

CRANKCASE for Transalp 650 MYSTIC ORANGE METALLIC (YR253) from 2005

CRANKCASE for Transalp 650 MYSTIC ORANGE METALLIC (YR253) from 2005
Reference
Product name
#1 11100-MCB-660

CRANKCASE COMP, R

Contact us
#2 11105-MM9-000

COLLAR, 23X20

Price €10.30
#3 11146-MN8-000

JET, OIL

Price €31.98
Contact us
#4 11200-MCB-660

CRANKCASE COMP, L

Contact us
#5 13325-MM9-315

BEARING A, MAIN (BLUE)

Price €48.30
#5 13326-MM9-315

BEARING B, MAIN (BLACK)

Price €48.30
#5 13327-MM9-315

BEARING C, MAIN (BROWN)

Price €48.30
Contact us
#6 23531-MV1-000

PLATE, OIL SEAL SETTING

Price €11.60
#7 32101-MAW-600

SUB HARNESS A

Price €41.50
#8 35500-MJ4-024

SWITCH ASSY, OIL PRESSURE (DENSO)

Price €83.11
#9 35600-MAW-601

SWITCH ASSY, NEUTRAL (TEC)

Price €38.17
#10 90002-MM9-000

BOLT, FLANGE, 8X140

Price €9.07
#11 90008-KE9-000

BOLT, FLANGE, 8X70

Price €1.97
#12 90011-MZ8-B40

BOLT, STUD,

Price €9.84
#13 90012-MCB-610

BOLT, STUD, 12X177

Price €14.48
#14 90013-MZ8-B40

BOLT, STUD, 10X177

Price €14.40
#15 90441-ME9-000

WASHER, SEALING, 8MM

Price €3.29
#16 90443-KR0-000

WASHER, NEUTRAL SWITCH

Price €3.83
#17 91204-MG3-003

OIL SEAL, 25X45X7 (ARAI)

Price €14.33
#18 91204-425-003

OIL SEAL, 125X25X8 (ARAI)

Price €11.35
#19 91305-MG7-003

O-RING, 5X17 (ARAI)

Price €5.41
#20 92800-14000

BOLT, DRAIN PLUG, 14MM

Price €2.94
#21 94109-14000

WASHER, DRAIN PLUG, 14MM

Price €1.74
#22 94301-14200

DOWEL PIN, 14X20

Price €2.04
#23 95701-0806500

BOLT, FLANGE, 8X65

Price €2.02
#24 95701-0808000

BOLT, FLANGE, 8X80

Price €1.78
#25 95701-0812500

BOLT, FLANGE, 8X125

Price €3.58
Contact us
#26 96001-0601400

BOLT, FLANGE, 6X14

Price €1.32
#27 96001-0604000

BOLT, FLANGE, 6X40

Price €1.70
#28 96001-0605000

BOLT, FLANGE, 6X50

Price €1.70
#29 96001-0608000

BOLT, FLANGE, 6X80

Price €1.78
