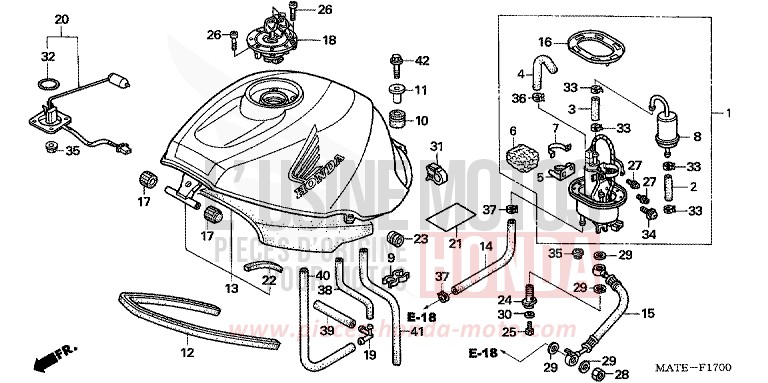

FUEL TANK for Super Blackbird CANDY PHOENIX BLUE (PB284H) from 2005

FUEL TANK for Super Blackbird CANDY PHOENIX BLUE (PB284H) from 2005
Reference
Product name
#1 16700-MAT-E21

PUMP UNIT, FUEL

Price €1,312.69
#2 16711-MAT-D00

HOSE A, PUMP

Price €11.75
#3 16712-MAT-D01

HOSE B, PUMP

Price €15.17
#4 16713-MBG-010

TUBE, FUEL PUMP RETURN

Price €7.52
#5 16714-MAT-D00

STAY B COMP

Contact us
#6 16714-MBG-000

FILTER, FUEL RETURN

Price €35.60
#7 16717-MAT-D00

BAND B

Price €11.22
#8 16900-MBG-013

FILTER COMP, FUEL

Price €112.81
#9 17446-ML7-710

CLAMP, TUBE

Price €5.27
#10 17508-MAT-000

RUBBER, TANK MOUNTING

Price €15.61
#11 17509-GZ4-670

COLLAR, TANK SETTING

Price €11.54
#12 17516-MAT-000

TRIM, FUEL TANK

Price €39.77
#14 17525-MAT-D01

HOSE, FUEL RETURN

Price €54.59
Contact us
#15 17527-MAT-D50

HOSE COMP, FUEL FEED

Price €138.80
Contact us
#16 17574-MN5-000

PACKING, BASE

Price €8.18
#17 17611-HA5-000

CUSHION, FR FUEL TANK

Price €9.25
#18 17620-MAS-E02

CAP COMP, FUEL FILLER

Price €269.63
#19 36191-KV3-700

JOINT, AIR FILTER

Price €16.80
#20 37080-MAT-E20

FUEL UNIT

Price €107.99
#21 80116-MAT-000

TAPE, FUEL TANK PROTECTION

Price €5.27
#22 81354-MAT-300

SEAL, FUEL TANK

Price €3.18
#23 83551-300-000

GROMMET, AIR CLEANER CASE

Price €9.37
#24 90008-PP4-E02

BOLT, BANJO, 12MM

Price €16.22
#25 90009-PP4-E01

BOLT, SEALING, 6MM

Price €6.55
#26 90074-MT4-000

BOLT, SOCKET, 4X21

Price €5.87
#27 90105-MBG-000

SCREW-WASHER, LOCK, 4X8

Price €2.39
#28 90201-PD1-000

NUT A, SEALING, 12MM

Price €4.27
#29 90428-PD6-003

WASHER, SEALING, 12MM

Price €4.31
#30 90430-PD6-003

WASHER, SEALING, 6MM

Price €5.84
#31 90690-GHB-631

CLIP, CABLE, 8MM

Price €2.04
#32 91305-MC7-000

O-RING, 395X5

Price €7.28
#33 91405-PD1-004

CLAMP, TUBE (D12)

Price €6.77
#34 93893-0501008

SCREW-WASHER, 5X10

Price €1.15
#35 94050-06080

NUT, FLANGE, 6MM

Price €1.18
#36 95002-4085004

CLAMP, TUBE (D85)

Price €1.33
#37 95002-4105008

CLAMP, TUBE (D105)

Price €1.48
#38 95005-3565020

TUBE, 35X650 (95005-35001-20M)

Contact us
#39 95005-4522020

TUBE, 45X220 (95005-45001-20M)

Price €8.75
#40 95005-4540020

TUBE, 45X400 (95005-45001-20M)

Price €8.88
#41 95005-8045050

TUBE, 8X450 (95005-80001-50M)

Contact us
#42 95701-0804500

BOLT, FLANGE, 8X45

Price €1.70
#13 17520-MAT-H10ZB

TANK SET, FUEL (WL) TYPE2 (TYPE2 )

Price €1,138.07
