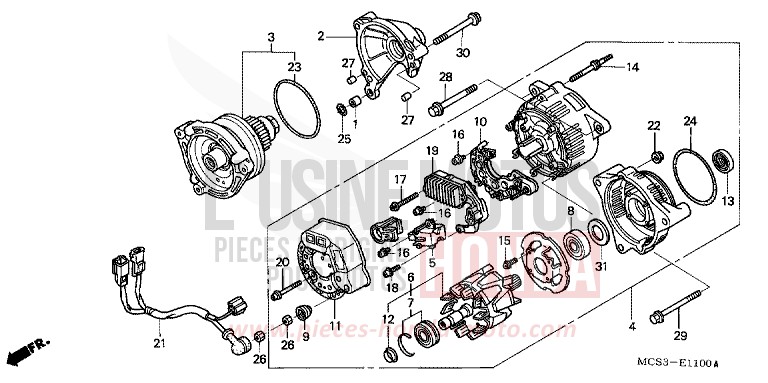

GENERATOR for ST1300 PEARL CORONADO BLUE (PB255) from 2004

GENERATOR for ST1300 PEARL CORONADO BLUE (PB255) from 2004
Reference
Product name
#1 11104-MCS-000

ORIFICE, 12MM

Price €10.82
#2 11203-MCS-000

HOLDER, AC GENERATOR BEARING

Price €122.51
#3 13430-MCS-020

GEAR ASSY, AC GENERATOR DRIVEN

Price €1,127.62
#4 31100-MCS-003

GENERATOR ASSY, AC

Price €2,234.75
#5 31105-MAJ-G41

HOLDER ASSY, BRUSH

Price €47.33
#6 31110-MCS-003

ROTOR ASSY

Price €683.48
#7 31111-MAJ-G41

BEARING, RR

Price €39.48
#8 31114-MCS-003

BEARING, FR

Price €24.35
#9 31119-MAJ-G41

BUSH, INSULATION

Price €16.40
#10 31127-MCS-003

RECTIFIER ASSY

Price €406.94
#11 31135-MAJ-G41

COVER, RR END

Price €72.37
#12 31138-PD1-004

COVER, BEARING

Price €9.23
#13 31141-MCS-003

SEAL, OIL

Price €13.75
#14 31145-PE9-941

BOLT, STUD

Price €9.79
#15 31146-MAJ-G41

SCREW

Price €6.43
#16 31147-PT0-003

SCREW-WASHER

Price €3.23
#17 31148-PD1-004

SCREW-WASHER, 4X25

Price €2.76
#18 31149-PZ1-003

SCREW

Price €2.74
#19 31150-PZ3-003

REGULATOR ASSY ()

Price €321.41
#20 31153-PZ1-003

BOLT

Price €6.72
#21 32130-MCS-000

SUB HARNESS, AC GENERATOR

Price €54.94
#22 90231-PD1-014

NUT-WASHER, 5MM

Price €7.72
#23 91303-MCS-003

O-RING, 955X24

Price €10.07
#24 91304-MAJ-G41

O-RING

Price €7.75
#25 91305-422-000

O-RING, 98X24

Price €4.21
#26 94001-060800S

NUT, HEX, 6MM

Price €1.04
#27 94302-08100

PIN B, DOWEL, 8X10

Price €2.41
#28 95701-0806500

BOLT, FLANGE, 8X65

Price €2.02
#29 95701-0808500

BOLT, FLANGE, 8X85

Price €2.40
#30 95701-0809000

BOLT, FLANGE, 8X90

Price €3.11
#31 31116-MCS-003

COVER, BEARING

Price €36.31
