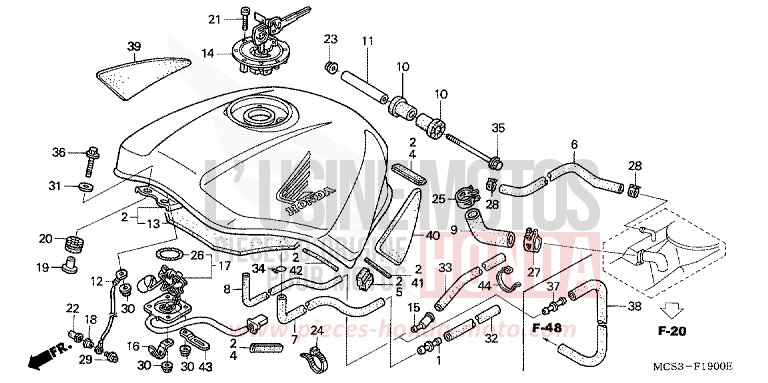

FUEL TANK for ST1300 CANDY GRACEFUL RED-U (R151) from 2004

FUEL TANK for ST1300 CANDY GRACEFUL RED-U (R151) from 2004
Reference
Product name
#1 17359-419-670

BREATHER PIPE CONNECTOR

Price €6.80
#2 17500-MCS-760ZB

TANK SET, FUEL (WL) TYPE2 (TYPE2 )

Price €1,189.02
#4 17516-HC0-000

TRIM, FUEL TANK

Price €8.23
#5 17514-MCS-G00

CUSHION, FUEL TANK

Price €8.64
#6 95001-5530040

TUBE, FUEL, 53X300 (95001-55001-60M)

Contact us
#7 17543-MCS-G01 i

TUBE, DRAIN

Price €34.66
#8 17544-MCS-G00 i

TUBE, BREATHER

Price €18.08
#9 17545-MCS-G00

TUBE, FUEL JOINT

Price €29.88
#10 17548-MCS-G00

CUSHION, FUEL TANK RR PIVOT

Price €20.99
#11 17549-MCS-G00

COLLAR, TANK SETTING

Price €14.64
#12 17575-MCS-G01 i

CABLE, FUEL TANK STOPPER

Price €20.20
#13 17590-MCS-G00

MAT, FUEL TANK

Price €31.52
#14 17620-MAS-E02 i

PLUG COMP. REMPLISSAGE FUEL

Price €334.55
#15 19103-ML7-000 i

RACCORD OF TUBE

Price €10.94
#16 32901-MA1-000

CLAMP, SUB CORD

Price €13.96
#17 37080-MCS-G00

FUEL UNIT SET

Price €215.39
#18 61102-329-300

COLLAR, RIVETING

Price €7.15
#19 61104-422-000 i

FESTSTELLHUELSE

Price €11.51
#20 84703-425-000 i

MOUNTING RUBBER, SCHLUSS- LICHT

Price €10.22
#21 90074-MT4-000 i

BOLT OF SOCKET, 4X21

Price €5.59
#22 90111-KW3-003 i

NUT OF ADJUSTMENT D'COWL, 5MM

Price €7.50
#23 90301-473-003 i

NUT U, 6MM (FUSE RASHI)

Price €11.29
#24 90651-KV6-003 i

STRIPE, CABLE 165MM (BLACK)

Price €9.78
#25 90661-SL0-A01

CLIP, HEATER HOSE, 30MM

Price €22.37
#26 91305-MC7-000 i

O-RING, 39.5X5

Price €10.12
#27 91405-MCS-G00

CLAMP, TUBE (D236)

Price €13.96
#28 95002-4100008 i

PIPE CLIP (D10)

Price €1.66
#29 93891-0502000 i

SCREW A HEAD A WASHER, 5X20

Price €0.88
#30 94050-06080 i

FLANGE NUT, 6MM

Price €1.20
#31 94103-06700

WASHER PLATE, 6MM

Price €0.78
#32 95001-7570040 i

TUBE, FUEL, 73X700 (95001-75001-60M)

Price €23.83
Contact us
#33 95001-8075040

TUBE, FUEL, 8X750 (95001-80001-60M)

Price €25.90
Contact us
#34 95002-02120

CLAMP, TUBE (B12)

Price €1.08
#35 95701-0611508

BOLT, FLANGE, 6X115

Price €3.06
#36 96001-0602807 i

FLANGE BOLT, 6X28

Price €1.50
#39 17506-MCS-G01 i

PAD, R KNEE GRIP

Price €93.77
#40 17507-MCS-G01 i

PAD, L KNEE GRIP

Price €93.77
#41 64368-MCS-G00

MAT D, HEAT GUARD

Price €4.24
#42 64369-MCS-G00

MAT E, HEAT GUARD

Price €8.90
#43 17522-MCW-D00

CLAMPER A, TUBE

Price €8.86
#44 90650-KV6-003 i

STRIPE, CABLE 95MM

Price €9.46
