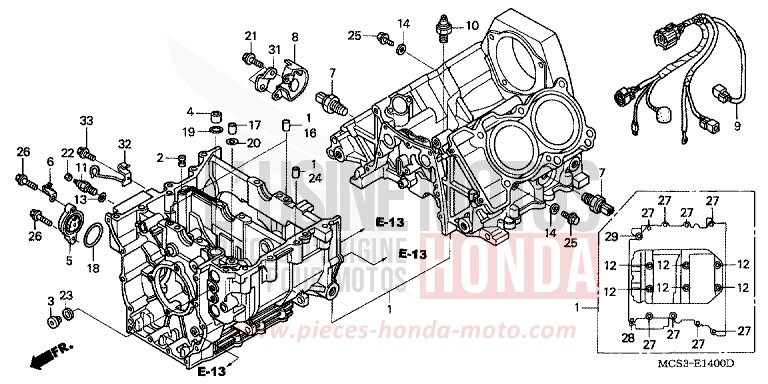

CRANKCASE for ST1300 CANDY GRACEFUL RED-U (R151) from 2004

CRANKCASE for ST1300 CANDY GRACEFUL RED-U (R151) from 2004
Reference
Product name
#1 11000-MCS-010

CRANKCASE SET

Contact us
#2 11205-MCS-000

ORIFICE A, 16MM

Price €11.04
#3 12206-MBW-000

BOLT, SEALING, 14MM

Price €16.70
#4 15326-KBV-000

COLLAR, 16X18X10

Price €7.20
#5 15660-MCS-000

FINDER COMP, OIL LEVEL

Price €67.57
#6 16106-KW7-900

CLIP B, TUBE

Price €7.08
#7 30530-MCS-004

SENSOR ASSY, KNOCK

Price €285.38
#8 30533-MCS-010

GUARD, SENSOR

Price €30.11
#9 32109-MCS-700

SUB CORD, ENGINE

Price €138.25
#10 35500-MJ4-024 i

SWITCH ASSY, OIL PRESSURE (DENSO)

Price €67.16
#11 35600-MK4-860

SWITCH ASSY, NEUTRAL

Price €43.04
#12 90001-MCS-000

BOLT, FLANGE, 10X87

Price €14.20
#13 90443-MJ6-000

WASHER, NEUTRAL

Price €5.02
#14 90463-ML7-000 i

WASHER, SEALING, 65MM

Price €4.62
#16 90701-MV9-670

DOWEL PIN, 10X16

Price €7.63
#17 90702-MJ4-000

DOWEL PIN, 10X10

Price €7.50
#18 91301-679-003

O-RING, 45X25 (ARAI)

Price €9.14
#19 91302-KE8-003 i

O-RING, 18X3 (ARAI)

Price €6.06
#20 91305-422-000 i

O-RING, 98X24

Price €7.34
#21 95701-0601800 i

BOLT, FLANGE, 6X18

Price €1.15
#22 94050-04000 i

NUT, FLANGE, 4MM

Price €0.88
#23 94109-14000

WASHER, DRAIN PLUG, 14MM

Price €1.78
#24 94301-10160 i

DOWEL PIN, 10X16

Price €2.38
#33 95701-0601200 i

BOLT, FLANGE, 6X12

Price €1.15
#26 95701-0602500 i

BOLT, FLANGE, 6X25

Price €1.34
#27 95701-0806000 i

BOLT, FLANGE, 8X60

Price €1.92
#28 95701-0808000 i

BOLT, FLANGE, 8X80

Price €1.81
#29 95701-0812000 i

BOLT, FLANGE, 8X120

Price €4.54
#31 30534-MCS-000

PLATE, SENSOR GUARD

Price €11.04
#32 30535-MCS-000

GUIDE, KNOCK SENSOR CORD

Price €17.24
