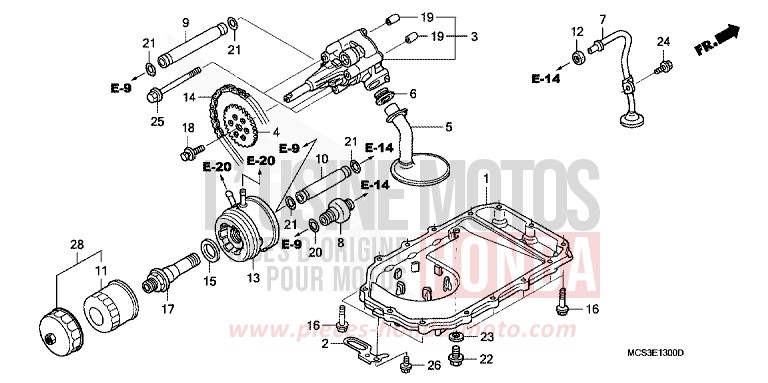

OIL PUMP/OIL PAN for ST1300 CANDY AMBASSADOR RED (R275) from 2002

OIL PUMP/OIL PAN for ST1300 CANDY AMBASSADOR RED (R275) from 2002
Reference
Product name
#1 11210-MCS-010

PAN, OIL

Price €580.19
#2 11211-MCS-010 i

CLAMP A, DRAIN HOSE

Price €14.33
#3 15100-MCS-010 i

PUMP ASSY, OIL

Price €388.45
#4 15134-MCS-000

SPROCKET, OIL PUMP DRIVEN (30T)

Price €67.57
#5 15150-MCS-000

STRAINER COMP, OIL

Price €97.27
#6 15154-MM5-000

GASKET, OIL STRAINER

Price €10.67
#7 15160-MCS-000

PIPE COMP, OIL SCAVENGING

Price €80.10
#8 15220-MW0-000

VALVE ASSY, RELIEF

Price €54.29
#9 15311-MCS-000

PIPE A, OIL PATH

Price €25.27
#10 15312-MCS-000

PIPE B, OIL PATH

Price €22.75
#11 15410-MCJ-000 i

OIL FILTER CARTRIDGE (TOYO ROKI)

Price €16.86
#12 15433-KGB-610

SEAL, RING

Price €8.04
#13 15700-MCS-003 i

COOLER COMP, OIL

Price €685.13
#14 19225-MCS-003 i

CHAIN, WATER PUMP DRIVE (70L)

Price €55.15
#15 23929-PX4-700

WASHER, SPRING, 24MM

Price €10.61
#16 90004-GHB-680 i

BOLT, FLANGE, 6X28 (NSHF)

Price €5.21
#17 90019-MCJ-000

BOLT, OIL COOLER

Price €58.87
#18 90021-MM5-000

BOLT WITH WASHER, 6X12

Price €7.31
#19 90501-MB0-000

DOWEL PIN, 8X14

Price €7.08
#20 91313-MB0-003 i

O-RING, 14.7X2.2 (ARAI)

Price €9.56
#21 91315-MCS-003

SEAL, OIL PATH PIPE, 203MM

Price €6.07
#22 90004-MCS-000

BOLT, DRAIN PLUG, 14MM

Price €8.15
#23 94109-14000

WASHER OF PLUG OF DRAIN, 14MM

Price €1.78
#24 95701-0601400 i

FLANGE BOLT, 6X14

Price €1.15
#25 95701-0608000 i

BOLT, FLANGE, 6X80

Price €1.92
#26 95701-0601000 i

FLANGE BOLT, 6X10

Price €1.15
