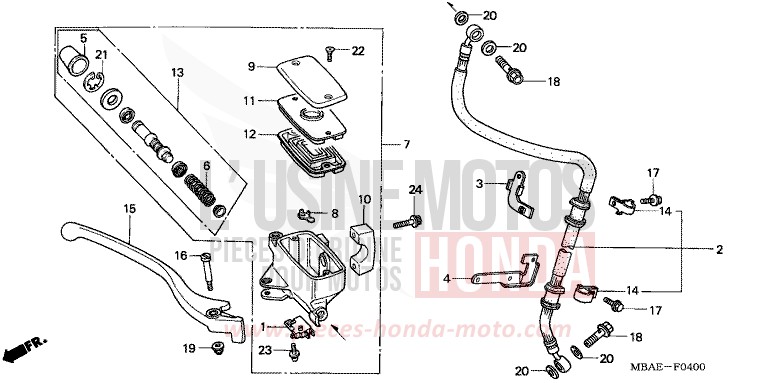

FR. BRAKE MASTER CYLINDER for Shadow Aero REARL SEDONA RED (R223B) from 2001

FR. BRAKE MASTER CYLINDER for Shadow Aero REARL SEDONA RED (R223B) from 2001
Reference
Product name
#1 35340-MM5-600 i

ASSY. SWITCH STOP FRONT

Price €40.21
#2 45126-MBA-J11

HOSE COMP, FR BRAKE

Price €162.01
Contact us
#3 45130-MBA-000

CLAMPER COMP, FR BRAKE HOSE

Price €17.68
Contact us
#4 45138-MBA-000

BRACKET, L FR HOSE CLIP

Price €21.43
Contact us
#5 45504-410-003 i

BOOT COMP.

Price €17.71
#6 45506-KA3-731

SPRING

Price €12.14
#7 45510-MAV-751 i

CYLINDER SUB ASSY, FR BRAKE MASTER (NISSIN)

Price €403.73
#8 45512-MA6-006

PROTECTOR

Price €7.12
#9 45513-MM5-016 i

CAP OF MASTER CYLINDER (NISSIN)

Price €55.90
#10 45517-MAV-751

HOLDER, MASTER CYLINDER (NISSIN)

Price €34.10
#11 45518-MM5-006 i

PLATE OF DIAPHRAGME

Price €19.50
#12 45520-MM5-006 i

DIAPHRAGME

Price €29.24
#13 45530-MN9-305 i

SET OF MASTER CYLINDER

Price €74.99
#14 52115-ML8-670

BRAKE HOSE CLIP

Price €12.10
#15 53175-MR1-671 i

LEVER COMP, R HANDLE

Price €56.81
#16 90114-MA5-671 i

BOLT OF PIVOT OF LEVER HANDLE

Price €13.19
#17 90130-ML0-730

FLANGE BOLT, 6X12

Price €5.21
#18 90145-MS9-612 i

BOLT OIL, 10X22 (SAGA)

Price €16.85
#19 90201-415-000

NUT OF CAP, 6MM

Price €7.06
#20 90545-300-000 i

WASHER OF BOLT OIL

Price €5.30
#21 90651-MA5-671 i

CIRCLIP

Price €7.63
#22 93600-040121G i

SCREW A HEAD PLATE, 4X12

Price €0.77
#23 93893-0401217 i

SCREW A HEAD A WASHER, 4X12

Price €1.08
#24 96600-0602217 i

BOLT, SOCKET, 6X22

Price €1.51
