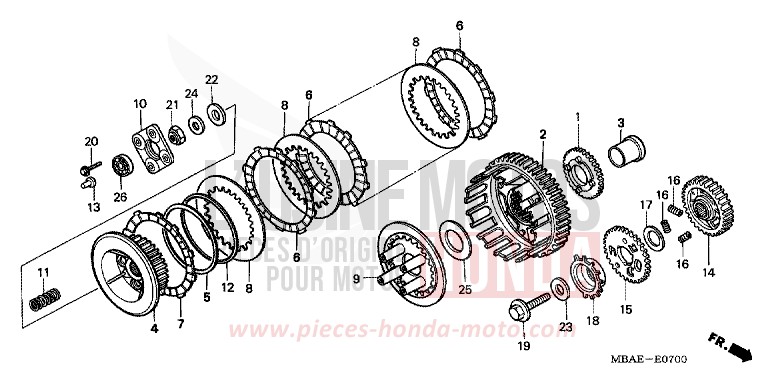

CLUTCH for Shadow Aero REARL SEDONA RED (R223B) from 2001

CLUTCH for Shadow Aero REARL SEDONA RED (R223B) from 2001
Reference
Product name
#1 15131-MBA-003 i

SPROCKET, OIL PUMP DRIVE (31T)

Price €70.03
#2 22100-MBA-000

OUTER COMP, CLUTCH (65T)

Price €613.87
#3 22116-MBA-000

COLLAR, PRIMARY DRIVEN

Price €58.94
#4 22120-MBA-000

CENTER, CLUTCH (24T)

Price €108.71
#5 22125-435-000 i

SEAT, JUDDER SPRING

Price €13.96
#6 22201-MAV-000 i

DISK, CLUTCH FRICTION

Price €16.46
#7 22202-MAE-000 i

DISK B, CLUTCH FRICTION

Price €16.50
#8 22321-MN8-000

PLATE, CLUTCH

Price €13.55
#9 22350-MS6-921 i

PLATE, CLUTCH PRESSURE

Price €82.12
#10 22361-MR1-000 i

PLATE, CLUTCH LIFTER

Price €26.99
#11 22401-MS8-000

SPRING, CLUTCH

Price €7.42
#12 22402-435-000 i

SPRING, JUDDER

Price €48.28
#13 22847-MZ8-H00

ROD, CLUTCH LIFTER

Price €11.29
#14 23113-MBA-300

GEAR, PRIMARY DRIVE (39T)

Contact us
#15 23114-MBA-300

SUB GEAR, PRIMARY (39T)

Price €72.95
#16 23115-MV1-300

SPRING, PRIMARY DRIVE GEAR

Price €4.88
#17 23117-MV1-003

SPRING, PRIMARY DRIVE FRICTION

Price €12.05
#18 30211-MBA-000

ROTOR, PULSER

Contact us
#19 90005-MN5-000

BOLT, FLANGE, 12X30

Price €11.05
#20 90007-MR1-000

BOLT, FLANGE SPECIAL, 6X30

Price €5.71
#21 90236-HA0-000

NUT, LOCK, 18MM

Price €15.83
#22 90401-MZ8-B40

WASHER, 18MM

Price €5.71
#23 90402-MBA-A40 i

WASHER, 122X40X5

Price €14.88
#24 90432-428-000

WASHER, LOCK

Price €13.91
#25 90452-471-000

WASHER, THRUST, 22MM

Price €11.33
#26 96100-6001000 i

BEARING, RADIAL BALL, 6001

Price €15.59
