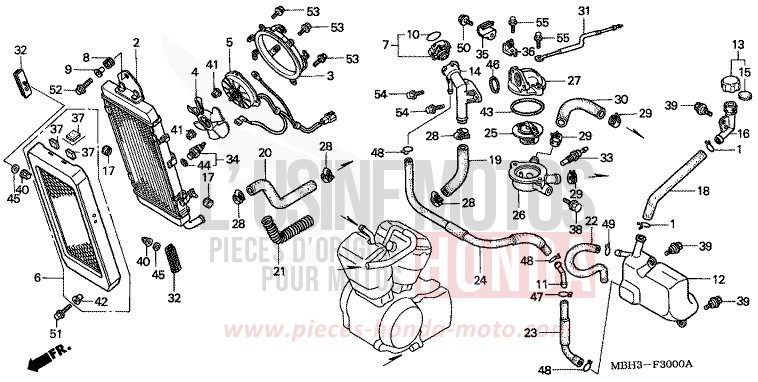

RADIATOR for Shadow SOMERSET ORANGE (R237A) from 1999

RADIATOR for Shadow SOMERSET ORANGE (R237A) from 1999
Reference
Product name
#1 17316-MN1-670

CIRCLIP A OF TUBE OF RENIFLARD

Price €6.94
#2 19010-MAA-013

RADIATOR COMP

Price €898.75
Contact us
#3 19015-MAA-003

SHROUD COMP

Contact us
#4 19020-MG8-003

FAN COMP, COOLING

Price €123.32
#5 19030-MAA-023 i

MOTOR ASSY, FAN

Price €594.37
#6 19040-MM8-610

COVER, RADIATOR

Price €162.83
Contact us
#7 19045-MY3-621 i

CAP COMP. RADIATOR

Price €69.29
#8 19051-KA3-830

MOUNTING RUBBER, RADIATOR

Price €9.20
#9 19052-MN8-000 i

RADIATOR MOUNTING BAND

Price €7.48
#10 19055-MV9-881 i

GASKET, CAP OF RADIATOR (ANGLAIS/FRENCH/JAPONAIS)

Price €12.35
#11 19103-ML7-000 i

RACCORD OF TUBE

Price €10.94
#12 19103-MM8-010

TANK, RESERVE

Price €99.32
Contact us
#13 19105-MG8-000

ASSY. CAP OF TANK OF SECOURS

Price €26.53
#14 19106-MM8-000

NECK, FILLER

Price €82.42
#15 19107-MG8-000

GASKET OF TANK OF RESERVE

Price €5.45
#16 19111-MR1-000

NECK, RESERVE TANK FILLER

Price €41.11
#17 19112-MF5-840

MOUNT, RADIATOR LOWER

Price €14.99
#18 19113-MM8-000

TUBE, RADIATOR RESERVE TANK

Price €34.14
#19 19116-MM8-000

HOSE, RADIATOR UPPER

Price €26.75
#20 19117-MM8-000

HOSE, RADIATOR LOWER

Price €56.24
#21 19120-MM8-000

GUARD, RADIATOR LOWER HOSE

Price €32.86
#22 19201-MAH-000

TUBE, OVERFLOW

Price €16.74
#23 19206-MAH-000

TUBE, RADIATOR RESERVE

Price €30.28
#24 19207-MAH-000

TUBE, RADIATOR RESERVE (B)

Price €33.64
#25 19300-MB0-003

THERMOSTAT

Price €128.56
#26 19311-MM8-000

CASE, THERMOSTAT

Price €145.78
#27 19315-MG8-000

COVER, THERMOSTAT

Price €129.86
Contact us
#28 19516-ML7-691 i

CLIP, TUBE, 24-32MM

Price €20.35
#29 19517-KM9-000

CLIP, WATER HOSE

Price €12.60
#30 19521-MM8-000

HOSE A, OUTLET WATER

Price €27.53
#31 32102-MAH-000

SUB CORD, TEMPERATURE EARTH

Price €7.57
Contact us
#33 37750-PC1-004 i

THERMO-UNIT (DENSO)

Price €79.03
#34 37760-MT2-003 i

ASSY. OF SWITCH, THERMIQUE

Price €153.10
#35 50173-MAH-A00

CLAMPER A, CHOKE CABLE

Price €7.81
#36 50189-MM8-000

BRACKET, THERMOSTAT CASE

Price €21.43
#37 50225-MY5-610

RUBBER, FUEL TANK CUSHION

Price €12.70
#38 90042-MB6-000

BOLT, SPECIAL, 8MM

Price €6.67
Contact us
#39 90116-ME9-000

FLANGE BOLT, 6MM

Price €5.96
#41 90315-MK3-003

NUT DENTELE, 5MM

Price €5.57
#42 90522-MF5-000 i

WASHER, FR COVER

Price €6.54
#43 91307-MB0-003 i

O-RING, 54X2 (ARAI)

Price €8.14
#44 91307-611-000

O-RING, 13.5X1.4

Price €4.96
#46 94608-30000 i

O-RING, 23X24

Price €1.81
#47 95002-02100 i

PIPE CLIP (B10)

Price €1.08
#48 95002-02120

CLAMP, TUBE (B12)

Price €1.08
#49 95002-70000

PIPE CLIP (C11)

Price €0.88
#50 95701-0601208 i

FLANGE BOLT, 6X12

Price €1.08
#51 95701-0602007 i

FLANGE BOLT, 6X20

Price €1.15
#52 95701-0602807 i

FLANGE BOLT, 6X28

Price €1.25
#53 96001-0601000 i

FLANGE BOLT, 6X10

Price €1.42
#54 96001-0601407 i

FLANGE BOLT, 6X14

Price €1.34
#55 96001-0602007 i

FLANGE BOLT, 6X20

Price €1.42
