CARBURETOR (ASSY.) 🏍️ Shadow
GASKET KIT (1) 🏍️ Shadow

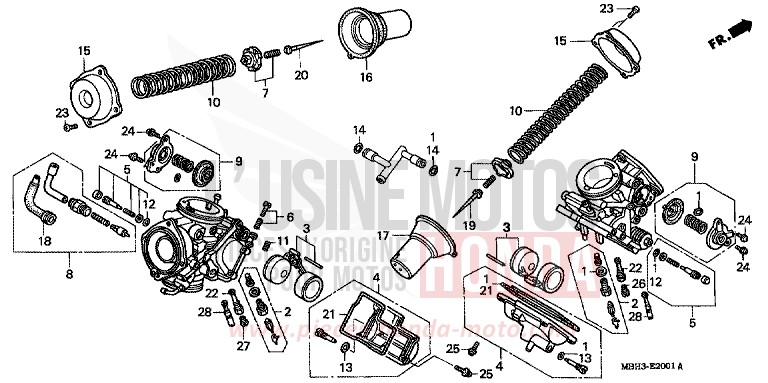

CARBURETOR (COMPONENT PARTS) for Shadow SOMERSET ORANGE (R237A) from 1999

CARBURETOR (COMPONENT PARTS) for Shadow SOMERSET ORANGE (R237A) from 1999
Reference
Product name
#1 16010-MBH-670

GASKET SET

Price €80.77
#2 16011-MAH-000

VALVE SET, FLOAT

Price €96.47
#3 16013-MAH-000 i

FLOAT SET

Price €80.56
#4 16015-MAH-750 i

FLOAT BOWL SET

Price €252.38
#5 16016-MAH-610 i

SET OF SCREW

Price €46.30
#6 16029-MB0-671

SET OF SCREW C

Price €35.57
#7 16037-MN9-004 i

PLATE SET, VALVE

Price €39.82
#8 16046-MAA-610 i

VALVE SET, STARTER

Price €97.24
#9 16048-MAH-610

VALVE SET, AIR CUT

Price €154.96
Contact us
#10 16050-MBH-670

SPRING, COMPRESSION COIL

Price €31.06
#11 16052-ME9-672 i

SPRING

Price €11.46
#12 16075-GHB-600 i

O-RING, 11X28

Price €5.58
#13 16075-GHB-640

O-RING, 1.3X4.3

Price €5.34
#14 16075-GHB-670

O-RING, 13X70

Price €6.65
#15 16107-MM8-004

UPPER COMP.

Price €91.92
#16 16111-MBH-670

PISTON COMP, VACUUM

Price €278.18
#17 16112-MBH-670

PISTON COMP, VACUUM

Price €158.68
#18 16118-ME9-671

CAP OF GASKET OF CABLE

Price €20.00
#20 16131-MBH-610

NEEDLE COMP, JET

Price €36.54
Contact us
#21 16163-MAH-750 i

FLOAT CHAMBER GASKET

Price €39.68
#22 16165-MBH-670

HOLDER, NEEDLE JET

Contact us
#23 93500-040101A i

CYLINDRICAL HEAD SCREW, 4X10

Price €0.78
#24 93892-0401218 i

SCREW-WASHER, 4X12

Price €0.88
#25 93892-0401610 i

SCREW A HEAD A WASHER, 4X16

Price €0.85
#26 99101-GHB1300 i

JET, MAIN, 130

Price €13.12
#27 99101-GHB1350 i

JET, MAIN, 135

Price €13.99
#28 99103-4370420 i

JET RALENTI 42

Price €21.00
