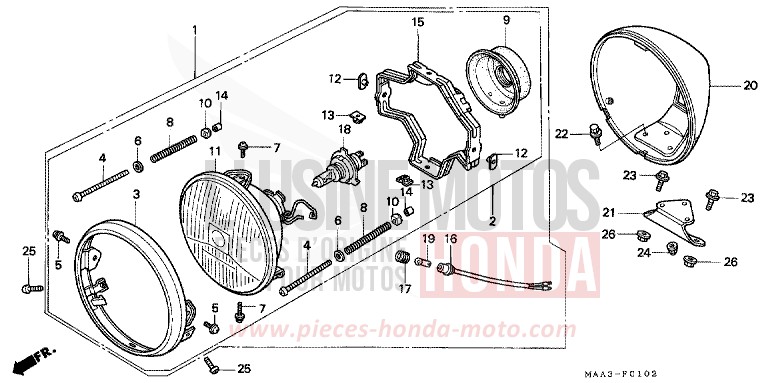

HEADLIGHT (VT1100C2) for Shadow REARL SEDONA RED (R223U) from 1998

HEADLIGHT (VT1100C2) for Shadow REARL SEDONA RED (R223U) from 1998
Reference
Product name
#1 33100-MAH-612

HEADLIGHT ASSY (12V 60/55W)

Price €376.37
Contact us
#3 33101-MAH-671 i

RIM COMP, HEADLIGHT

Price €158.52
#4 33103-MAH-671 i

SCREW OF ADJUSTMENT D'INTENSITE HEADLIGHT

Price €8.23
#5 33104-MAH-671

SCREW-WASHER

Price €7.28
#6 33105-MAH-671

WASHER

Price €2.66
#7 33106-MAH-671

SCREW-WASHER

Price €3.19
Contact us
#8 33107-MK7-671 i

SPRING OF ADJUSTMENT D'INTENSITEPHARE

Price €7.91
#9 33112-MM9-013 i

COVER OF RUBBER

Price €31.22
#10 33118-438-841

NUT OF ADJUSTMENT D'INTENSITE HEADLIGHT

Price €6.38
#11 33120-MAH-611 i

HEADLIGHT UNIT

Price €213.53
#12 33128-MAH-671

NUT, SPECIAL

Price €5.16
#13 33129-MAH-671

NUT COMP

Price €7.85
#15 33153-MAH-673 i

RING COMP, HEADLIGHT

Price €66.68
Contact us
#16 33170-MAH-611

SOCKET COMP, POSITION LIGHT

Price €28.09
Contact us
#17 33905-371-601

RUBBER OF GASKET

Price €13.52
#18 34901-MC7-601 i

AMPOULE OF HEADLIGHT (12V 60/55W) (STANLEY)

Price €86.15
#19 34903-388-611 i

AMPOULE OF LIGHT POSITION (12V 4W) (STANLEY)

Price €8.28
#20 61301-MAH-003

CASE COMP, HEADLIGHT

Price €256.30
Contact us
#21 61311-MAH-003

STAY, HEADLIGHT

Contact us
#22 90116-MAH-003

BOLT-WASHER, 6X18

Contact us
#23 90183-438-000

SPEZIALFLANSCHBOLT, 8X26

Price €10.25
#24 90202-ZV0-000

NUT OF CAP, 6MM

Price €3.46
#25 93500-050120B

KEGELKOPFBOLT, 5X12

Price €1.08
#26 94050-08000 i

FLANGE NUT, 8MM

Price €2.45
