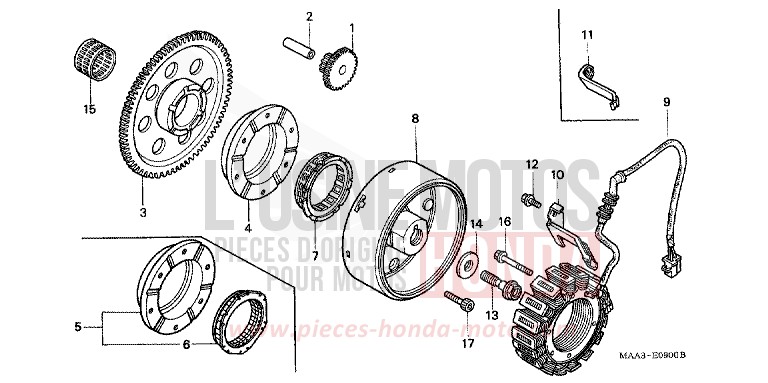

GENERATOR for Shadow REARL SEDONA RED (R223Q) from 1997

GENERATOR for Shadow REARL SEDONA RED (R223Q) from 1997
Reference
Product name
#1 28101-MG8-000

GEAR, STARTER REDUCTION (50T)

Price €192.00
#2 28102-MG8-000

PIN, 12X44

Price €10.73
Contact us
#3 28110-MM8-010

GEAR COMP, STARTING DRIVEN (75T)

Price €176.17
#4 28121-MAH-000

OUTER, STARTING CLUTCH

Price €208.02
#7 28126-MK5-004

CLUTCH, ONE WAY

Price €154.80
#8 31110-MAA-005

FLYWHEEL COMP

Contact us
#9 31120-MAH-005

STATOR COMP

Price €781.02
#10 32961-MAH-000

CLAMPER, AC GENERATOR CORD

Contact us
#12 90004-GHB-610

BOLT, FLANGE, 6X12 (NSHF)

Price €5.75
#13 90025-MM8-000

BOLT, UBS, 12X45

Price €12.79
Contact us
#14 90402-PC6-000

WASHER, 125X34X5

Price €8.05
#15 91061-MK5-013

BEARING, NEEDLE, 34X39X237 (TOYO)

Price €39.18
#16 96001-0604000

BOLT, FLANGE, 6X40

Price €1.70
#17 96700-0801610

BOLT, SOCKET, 8X16

Price €1.33
