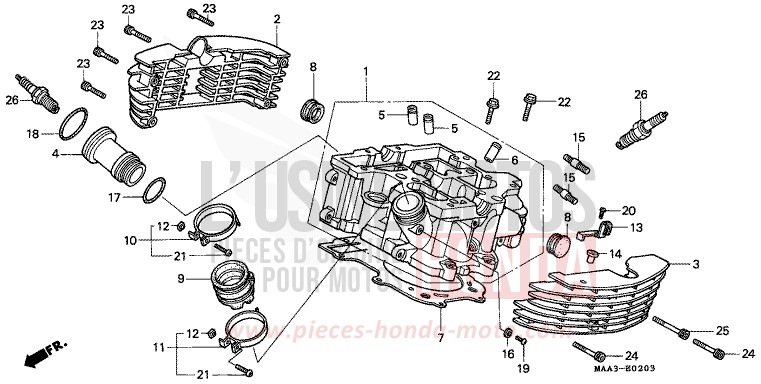

CYLINDER HEAD (REAR) (VT1100CV/CW/C2) for Shadow REARL SEDONA RED (R223Q) from 1997

CYLINDER HEAD (REAR) (VT1100CV/CW/C2) for Shadow REARL SEDONA RED (R223Q) from 1997
Reference
Product name
#1 12220-MAH-000 i

HEAD COMP, RR CYLINDER

Contact us
#2 12222-MAH-000

FIN A, RR CYLINDER HEAD

Contact us
#3 12223-MAH-610

FIN B, RR CYLINDER HEAD

Contact us
#4 12225-MG8-000

SLEEVE, PLUG

Price €52.19
#5 12231-MG8-305 i

GUIDE, IN VALVE (OS)

Price €40.30
#6 12233-MG8-305 i

GUIDE, EX VALVE (OS)

Price €61.02
#7 12251-MAH-003

GASKET, CYLINDER HEAD

Price €55.69
#8 12312-ME9-750

PLUG, CAMSHAFT

Price €18.26
#9 16211-MAH-000

INSULATOR, CARBURETOR

Price €41.26
#10 16218-MAH-000

BAND A, INSULATOR

Price €18.41
Contact us
#11 16219-MAH-000

BAND B, INSULATOR

Price €14.83
#12 16222-MV4-300

NUT, VIERKANT, 5MM

Price €4.88
#13 32905-MAH-000

CLIP, HIGH TENSION CORD

Contact us
#14 64528-KV3-000

NUT, RADKASTEN 5MM

Price €11.92
#15 90035-MAH-000

BOLT, STUD, 8X31

Price €6.58
#16 90452-323-000

WASHER SEALING, 5MM

Price €5.99
#17 91304-MG7-003 i

O-RING, 274X24 (ARAI)

Price €10.66
#18 91351-MG7-004 i

O-RING, 353X24 (NOK)

Price €11.72
#19 93500-050080A i

CYLINDRICAL HEAD SCREW, 5X8

Price €0.95
#20 93500-050120G i

CYLINDRICAL HEAD SCREW, 5X12

Price €0.78
#21 93500-050250G i

CYLINDRICAL HEAD SCREW, 5X25

Price €0.85
#22 95701-0603507 i

FLANGE BOLT, 6X35

Price €1.42
#23 96700-0602007 i

BOLT, SOCKET, 6X20

Price €1.18
#24 96700-0603507

BOLT, SOCKET, 6X35

Price €1.36
#25 96700-0604507

BOLT, SOCKET, 6X45

Price €2.33
Contact us
#26 98069-56916 i

SPARK PLUG D'IGNITION (DPR6EA-9) (NGK)

Price €11.60
#26 98069-56926 i

SPARK PLUG D'IGNITION (X20EP

Price €11.60
#26 98069-57916 i

SPARK PLUG IGNITION (DPR7EA-9) (NGK)

Price €6.67
#26 98069-57926 i

SPARK PLUG IGNITION (X22EPR-U9)

Price €6.67
#26 98069-58916 i

SPARK PLUG IGNITION (DPR8EA-9) (NGK)

Price €6.67
#26 98069-58926

SPARK PLUG IGNITION (X24EPR-U9) (DENSO)

Price €6.67
