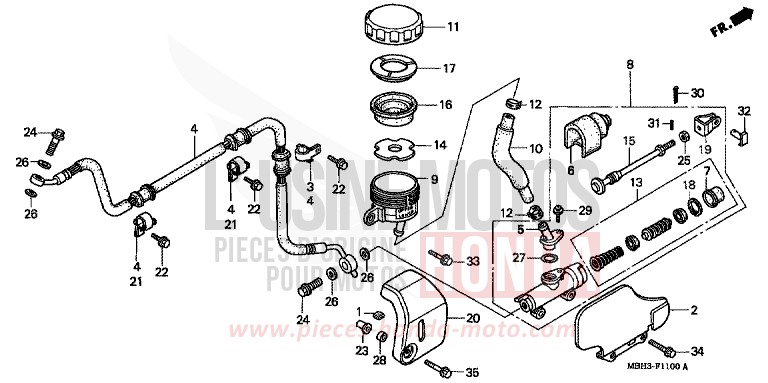

RR. BRAKE MASTER CYLINDER for Shadow REARL SEDONA RED (R223E) from 1999

RR. BRAKE MASTER CYLINDER for Shadow REARL SEDONA RED (R223E) from 1999
Reference
Product name
#1 18293-147-000 i

RUBBER OF GASKET OF PROTECTOR

Price €7.60
#2 40545-MAH-A40

GUARD, MASTER CYLINDER HEAT

Contact us
#3 43156-MAH-000

CLAMPER B, RR BRAKE HOSE

Price €7.80
#4 43310-MBH-761

HOSE COMP, RR BRAKE

Contact us
#5 43503-MAH-A00 i

CONNECTOR, MASTER CYLINDER

Price €23.96
#6 43504-MAH-A00

BOOT B, RR MASTER CYLINDER

Contact us
#7 43504-MZ0-760 i

BOOT COMP

Price €13.37
#8 43510-MAH-A00

CYLINDER SUB ASSY, RR BRAKE MASTER

Contact us
#9 43511-MAH-A00 i

CUP COMP, OIL

Price €61.96
#10 43512-MAH-A00

HOSE, RR MASTER CYLINDER

Contact us
#11 43513-MAH-A00 i

CAP, OIL CUP

Price €45.66
#12 43514-MZ0-760 i

CLAMP, MASTER CYLINDER OIL HOSE

Price €23.64
#13 43520-MAH-A00 i

PISTON SET, MASTER CYLINDER

Price €104.66
#14 43523-MAH-A00 i

FLOAT, RR MASTER CYLINDER

Price €8.42
#15 43530-MAH-A00

ROD COMP, PUSH

Contact us
#16 45520-MAH-A00 i

DIAPHRAGM

Price €19.44
#17 45521-MAH-A00 i

PLATE, DIAPHRAGM

Price €10.07
Contact us
#18 46182-MZ0-760 i

CIRCLIP, MASTER CYLINDER

Price €5.16
#19 46504-MAH-A00

JOINT, BRAKE ROD

Price €10.45
#20 46550-MAH-000

COVER, MASTER CYLINDER RESERVE TANK

Price €793.82
#21 52114-KY1-000

CLAMPER, BRAKE HOSE

Price €9.12
#22 90111-MR1-000

BOLT, FLANGE, 6X16

Price €5.59
#23 90114-KAS-900

NUT OF ADJUSTMENT D'COWL, 6MM

Price €6.92
#24 90145-MS9-612 i

BOLT OIL, 10X22 (SAGA)

Price €16.85
#25 90305-MAH-A00

NUT, HEX, 8MM

Price €2.58
#26 90545-300-000 i

WASHER OF BOLT OIL

Price €5.30
#27 91212-MZ0-760 i

O-RING, 148X24

Price €6.53
#28 91501-883-691

COLLAR, TANK SETTING

Price €4.64
Contact us
#29 93893-0401217 i

SCREW A HEAD A WASHER, 4X12

Price €1.08
#30 94201-20150 i

SPLIT PIN, 2.0X15

Price €0.78
#31 94305-20102

FEDERSTIFT, 2X10

Price €1.04
#32 95015-54000 i

AXE D, ARTICULATION

Price €3.00
#33 95701-0601608 i

FLANGE BOLT, 6X16

Price €1.08
#34 95701-0602500 i

FLANGE BOLT, 6X25

Price €1.34
#35 96001-0602802 i

FLANGE BOLT, 6X28

Price €1.81
