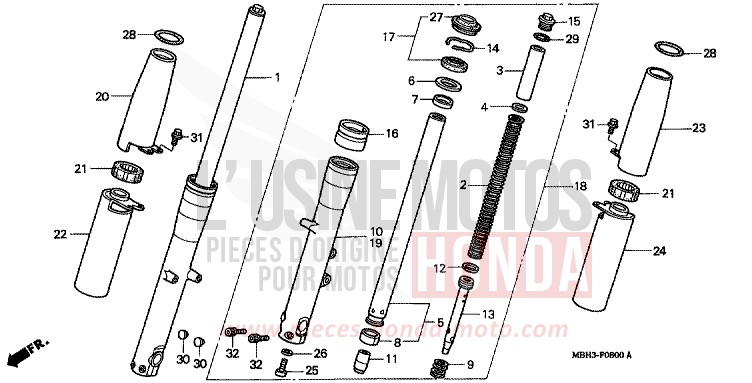

FRONT FORK for Shadow REARL SEDONA RED (R223E) from 1999

FRONT FORK for Shadow REARL SEDONA RED (R223E) from 1999
Reference
Product name
#1 51400-MBH-003

FORK ASSY, R FR ()

Contact us
#2 51401-MBH-003

SPRING, FR FORK

Price €87.91
Contact us
#3 51402-MBH-003

COLLAR, SPRING

Contact us
#4 51404-MB4-003

PLATE OF GASKET OF SPRING

Price €10.44
#5 51410-MBC-003 i

PIPE COMP, FR FORK

Contact us
#6 51412-MB4-003 i

RING OF REFOULEMENT (SHOWA)

Price €13.46
#7 51414-KCR-003 i

RING OF GUIDE (SHOWA)

Price €21.98
#8 51415-KCR-003 i

POUSSEE OF COULISSEAU (SHOWA)

Price €25.02
#9 51416-MM8-881

SPRING OF REBONDISSEMENT FRONT (SHOWA)

Price €10.85
#10 51420-MBH-003

CASE, R BOTTOM

Contact us
#11 51432-MV9-003 i

PIECE OF RETENUE D'OIL (SHOWA)

Price €42.04
#12 51437-MN5-003

RING OF PISTON (SHOWA)

Price €13.08
#13 51440-MAH-671

PIPE, SEAT (SHOWA)

Contact us
#14 51447-KA4-711 i

RING OF STOPPER OF GASKET SEALING A OIL (SHOWA)

Price €8.32
#15 51455-MG9-771

BOLT, FR FORK

Price €60.28
#16 51460-MBH-003

COVER COMP, FR FORK CASE

Contact us
#17 51490-MN8-305 i

FRONT FORK GASKET SET

Price €37.02
#18 51500-MBH-003

FORK ASSY, L FR ()

Contact us
#19 51520-MBH-003

CASE, L BOTTOM

Contact us
#20 51610-MBH-000

COVER COMP, R FR FORK TOP

Price €104.52
Contact us
#21 51611-MBA-000 i

MOUNT, FR FORK COVER

Price €20.57
#22 51620-MBH-000 i

COVER COMP, R FR FORK UNDER

Price €173.77
#23 51660-MBH-000

COVER COMP, L FR FORK TOP

Price €84.94
Contact us
#24 51670-MBH-000 i

COVER COMP, L FR FORK UNDER

Price €176.66
#25 90116-KV3-701 i

BOLT OF SOCKET, 8MM (SHOWA)

Price €5.96
#26 90544-283-000 i

SPECIAL WASHER, 8MM (SHOWA)

Price €6.26
#27 91254-MM8-003 i

COVER, POUSSIERE

Price €19.93
#28 91305-MC7-000 i

O-RING, 39.5X5

Price €10.12
#29 91356-MB4-003

O-RING

Price €6.65
#30 91455-MB0-010 i

CAP OF BOLT OF SOCKET, 8MM

Price €7.08
#31 96001-0601202

BOLT, FLANGE, 6X12

Price €1.50
#32 96600-0803510

BOLT, SOCKET, 8X35

Price €2.38
