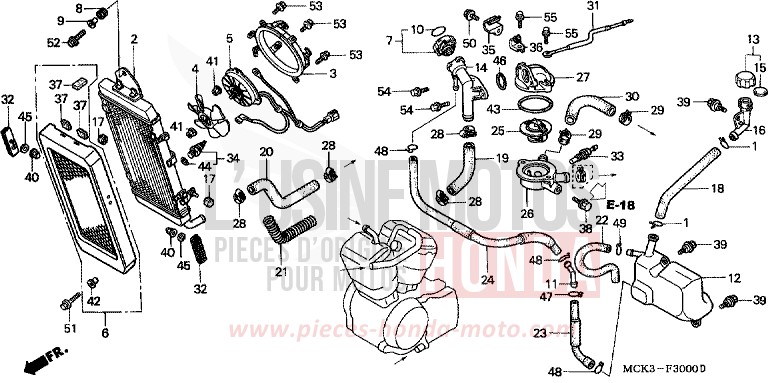

RADIATOR for Shadow REARL SEDONA RED (R223) from 2002

RADIATOR for Shadow REARL SEDONA RED (R223) from 2002
Reference
Product name
#1 17316-MN1-670

CLIP A, BREATHER TUBE

Price €6.18
#2 19010-MCK-A01

RADIATOR COMP

Contact us
#3 19015-MAA-003

SHROUD COMP

Contact us
#4 19020-MG8-003

FAN COMP, COOLING

Price €100.90
#5 19030-MAA-023

MOTOR ASSY, FAN

Price €315.46
#6 19040-MCK-G00

COVER, RADIATOR

Contact us
#7 19045-GBF-700

CAP COMP, RADIATOR

Price €62.20
#8 19051-KA3-830

RUBBER, RADIATOR MOUNTING

Price €9.26
#9 19052-MN8-000

COLLAR, RADIATOR MOUNTING

Price €8.17
#10 19055-MV9-881

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

Price €10.01
#11 19103-ML7-000

JOINT, TUBE

Price €9.90
#12 19103-MM8-010

TANK, RESERVE

Price €79.01
#13 19105-MG8-000

CAP ASSY, RESERVE TANK

Price €16.93
#14 19106-MM8-000

NECK, FILLER

Price €65.24
#15 19107-MG8-000

PACKING, RESERVE TANK

Price €3.31
#16 19111-MR1-000

NECK, RESERVE TANK FILLER

Price €41.23
#17 19112-MF5-840

MOUNT, RADIATOR LOWER

Price €13.50
#18 19113-MM8-000

TUBE, RADIATOR RESERVE TANK

Price €39.04
#19 19116-MM8-000

HOSE, RADIATOR UPPER

Price €21.17
#20 19117-MM8-000

HOSE, RADIATOR LOWER

Price €50.77
#21 19120-MM8-000

GUARD, RADIATOR LOWER HOSE

Price €31.73
#22 19201-MAH-000

TUBE, OVERFLOW

Price €12.35
#23 19206-MAH-000

TUBE, RADIATOR RESERVE

Price €25.64
#24 19207-MAH-000

TUBE, RADIATOR RESERVE (B)

Price €29.58
#25 19300-MB0-003

THERMOSTAT

Price €96.90
#26 19311-MM8-000

CASE, THERMOSTAT

Price €99.01
#27 19315-MG8-000

COVER, THERMOSTAT

Price €99.52
#28 19516-ML7-691

CLAMP, HOSE, 24-32MM

Price €14.05
#29 19517-KM9-000

CLIP, WATER HOSE

Price €10.26
#30 19521-MM8-000

HOSE A, OUTLET WATER

Price €22.37
#31 32102-MAH-000

SUB CORD, TEMPERATURE EARTH

Price €7.57
#33 37750-PC1-004

THERMO UNIT (DENSO)

Price €92.92
#34 37760-MT2-003

SWITCH ASSY, THERMO

Price €140.83
#35 50173-MAH-A00

CLAMPER A, CHOKE CABLE

Price €7.81
#36 50189-MM8-000

BRACKET, THERMOSTAT CASE

Price €21.05
#37 50225-MY5-610

RUBBER, FUEL TANK CUSHION

Price €13.73
#38 90042-MB6-000

BOLT, SPECIAL, 8MM

Price €6.67
Contact us
#39 90116-ME9-000

BOLT, FLANGE, 6MM

Price €6.42
#41 90315-MK3-003

NUT, SERRATE, 5MM

Price €4.48
#42 90522-MF5-000

WASHER, FR COVER

Price €6.42
#43 91307-MB0-003

O-RING, 54X2 (ARAI)

Price €5.26
#44 91307-611-000

O-RING, 135X14

Price €4.50
#46 94608-30000

O-RING, 23X24

Price €1.78
#47 95002-02100

CLIP, TUBE (B10)

Price €1.06
#48 95002-02120

CLIP, TUBE (B12)

Price €1.06
#49 95002-70000

CLIP, TUBE (C11)

Price €0.86
#50 95701-0601208

BOLT, FLANGE, 6X12

Price €1.06
#51 95701-0602007

BOLT, FLANGE, 6X20

Price €1.13
#52 95701-0602807

BOLT, FLANGE, 6X28

Price €1.22
#53 96001-0601000

BOLT, FLANGE, 6X10

Price €1.39
#54 96001-0601407

BOLT, FLANGE, 6X14

Price €1.32
#55 96001-0602007

BOLT, FLANGE, 6X20

Price €1.39
