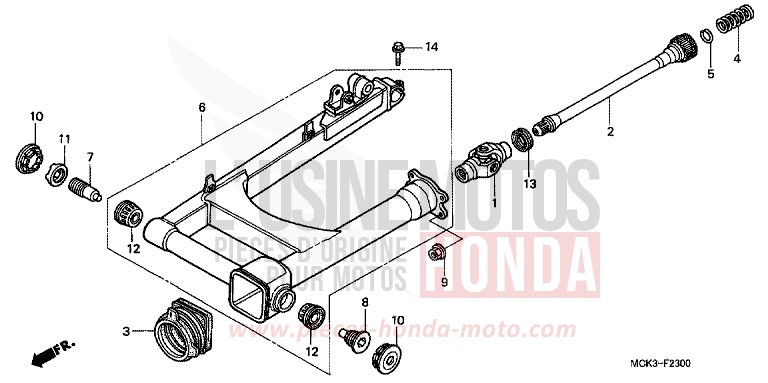

SWINGARM for Shadow REARL SEDONA RED (R223) from 2002

SWINGARM for Shadow REARL SEDONA RED (R223) from 2002
Reference
Product name
#1 40200-MAH-A00

JOINT COMP, YOKE

Price €206.36
Contact us
#2 40201-MAH-A00

SHAFT, PROPELLER

Contact us
#3 40207-MG8-000

BOOT, JOINT

Price €47.36
#4 40215-ME9-003 i

SPRING, PROPELLER SHAFT

Price €9.53
#5 40221-MB0-000

RING OF STOPPER

Price €8.45
#6 52100-MAH-A40 i

SWINGARM ASSY, RR

Contact us
#7 90121-MAH-A00

BOLT, R SWINGARM PIVOT

Price €27.22
Contact us
#8 90122-MAH-A00

BOLT, L SWINGARM PIVOT

Price €57.29
Contact us
#9 90308-357-000

NUT, HEX, 10MM

Price €11.66
#10 90312-MB0-700 i

CAP, R LOCK NUT

Price €26.09
#11 90355-469-000

NUT, BLOCAGE ARTICULATION ARM OSCILLANT

Price €22.75
#12 91066-HA7-672 i

ROULEMENT OF ROULEAU CONIQUE, 17X40X13.25 (KOYO)

Price €63.19
#13 91261-ME9-005 i

GASKET SEALING D'OIL, 27X43X7

Price €12.41
#14 95701-0803200 i

FLANGE BOLT, 8X32

Price €1.66
