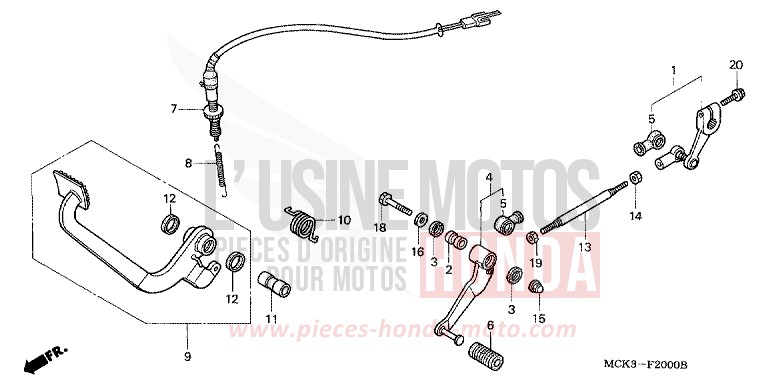

CHANGE PEDAL for Shadow REARL SEDONA RED (R223) from 2002

CHANGE PEDAL for Shadow REARL SEDONA RED (R223) from 2002
Reference
Product name
#1 24702-MM8-000

ARM COMP, GEAR CHANGE

Price €67.43
#2 24705-MK3-000

COLLAR, GEAR CHANGE PEDAL PIVOT

Price €12.76
#3 24706-MK3-770

RUBBER, DUST SEAL

Price €8.11
#4 24710-MAA-A00

PEDAL COMP, CHANGE

Price €197.29
#5 24724-422-000

COVER, DUST

Price €18.52
#6 24781-KR3-770

RUBBER, GEAR CHANGE PEDAL

Price €9.32
#7 35350-MAH-003

SWITCH ASSY, RR STOP

Price €28.78
Contact us
#8 35357-ME9-000

SPRING, STOP SWITCH

Price €6.80
#9 46500-MCK-A00

PEDAL ASSY, RR BRAKE

Price €195.61
#10 46514-MCK-A00

SPRING, BRAKE RETURN

Price €9.70
Contact us
#11 46515-MM8-000

COLLAR, RR BRAKE PIVOT

Price €10.09
#12 46525-KK0-003

DUST SEAL, 17X20X25

Price €7.82
#13 90065-KAF-000

BOLT, TIE ROD

Price €15.78
Contact us
#14 90201-700-000

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

Price €0.85
#15 90208-438-000

NUT, CAP, 8MM

Price €6.47
#16 90514-921-000

WASHER, 8MM

Price €1.82
#18 92201-080450A

BOLT, HEX, 8X45

Price €1.49
#19 94002-060000S

NUT, HEX, 6MM

Price €1.04
#20 95701-0602000

BOLT, FLANGE, 6X20

Price €1.06
