CYLINDER HEAD (FRONT) 🏍️ Shadow

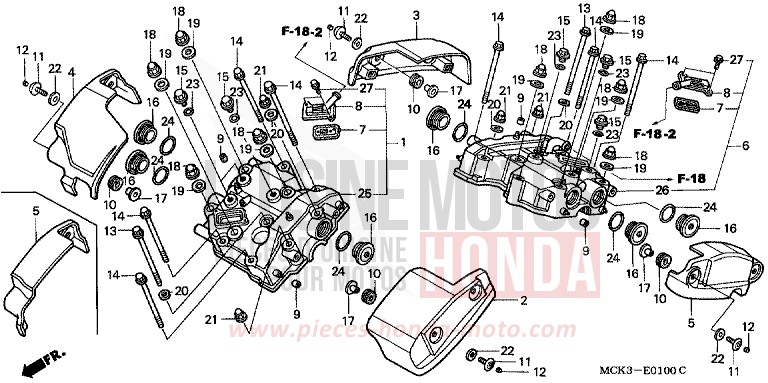

CYLINDER HEAD COVER for Shadow REARL SEDONA RED (R223) from 2002

CYLINDER HEAD COVER for Shadow REARL SEDONA RED (R223) from 2002
Reference
Product name
#1 12300-MCK-G00 i

COVER ASSY, FR CYLINDER HEAD

Contact us
#2 12350-MCK-G00

COVER A, OVER HEAD

Contact us
#3 12351-MAH-000 i

COVER C, OVER HEAD

Contact us
#5 12356-MAH-000

COVER D, OVER HEAD

Contact us
#6 12400-MCK-G00 i

COVER ASSY, RR CYLINDER HEAD

Contact us
#6 12400-MCK-G01 i

COVER ASSY, RR CYLINDER HEAD

Contact us
#7 18601-MJ1-790 i

VALVE COMP, REED

Price €56.70
#8 18612-MCK-G00

REED VALVE COVER

Price €51.82
#9 19041-611-003 i

RUBBER, BUSHING

Price €42.22
#10 64386-MS2-000

RUBBER OF COVER LOWER OF PIVOT

Price €8.89
#11 90001-MAH-000

BOLT, SPECIAL, 6X16

Price €8.15
#12 90005-MAH-000

PLUG, HEX, 5MM

Price €3.32
#13 90010-MG8-000

BOLT, FLANGE, 8X165

Price €10.93
#14 90015-MG8-000 i

BOLT, FLANGE, 8X150

Price €10.70
#15 90047-MK7-671

BOLT, SEALING, 14MM

Contact us
#16 90048-MR5-670

BOLT, SEALING, 22MM

Price €21.30
#17 90122-463-770

BAND OF FIXING D'COWL LOWER

Price €9.68
#18 90202-329-000 i

NUT OF CAP OF FLANGE, 10MM

Price €8.76
#19 90403-ML4-610 i

WASHER SEALING, 10MM

Price €11.70
#20 90441-ME9-000

WASHER SEALING, 8MM

Price €5.99
#21 90443-107-000 i

NUT OF CAP, 8MM

Price €8.11
#22 90525-428-900 i

WASHER PLATE, 6MM

Price €6.26
#23 91301-KJ9-000 i

O-RING, 138X19

Price €5.29
#24 91310-MB0-003 i

O-RING, 215X2

Price €5.82
#27 90012-896-750

FLANGE BOLT, 5X14

Price €1.38
