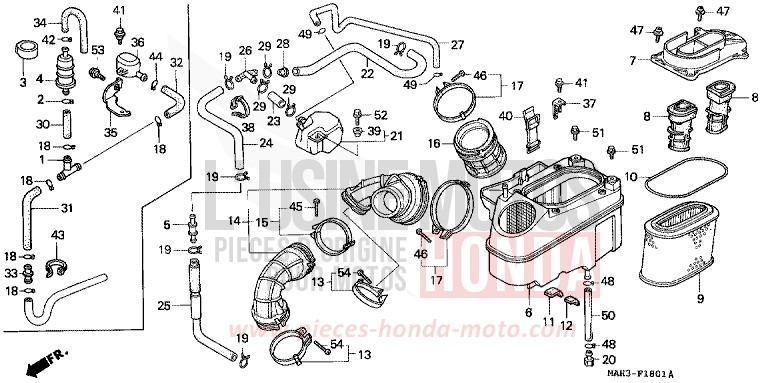

AIR CLEANER (2) for Shadow REARL SEDONA RED (R223) from 1999

AIR CLEANER (2) for Shadow REARL SEDONA RED (R223) from 1999
Reference
Product name
#5 16966-MJ4-670

CONNECTOR OF PIPE FUEL

Price €25.30
#6 17210-MM8-020 i

CASE SUB COMP, AIR CLEANER

Price €175.32
#7 17212-MM8-010

COVER, AIR CLEANER CASE

Price €35.22
#8 17215-MAH-610

DUCT, AIR CLEANER

Price €18.08
Contact us
#9 17215-MM8-020 i

ELEMENT, AIR CLEANER

Price €53.45
#10 17217-MG8-300

PACKING, AIR CLEANER CASE COVER

Price €11.98
#11 17220-MAH-610

RUBBER A, CUSHION

Contact us
#12 17225-MAH-610

RUBBER B OF TAMPON

Price €5.98
#13 17254-MAH-611

BAND A, CONNECTING TUBE

Price €23.78
#14 17255-MM8-000

TUBE A, CONNECTING

Price €78.25
Contact us
#15 17256-MM8-000 i

BAND B, CONNECTING TUBE

Price €9.50
#16 17258-MM8-300

TUBE B, AIR CLEANER CONNECTING

Price €73.50
Contact us
#17 17259-MM8-000

BAND C, CONNECTING TUBE

Price €29.94
#19 17369-KB4-670

PIPE CLIP OF BREATHER

Price €7.50
#20 17370-419-700

PLUG OF PIPE OF RESPIRATION

Price €8.72
#21 17551-MM8-000

CRANKCASE BREATHER STORAGE TANK

Price €167.44
#22 17552-MAH-000

TUBE A, BREATHER

Price €13.85
Contact us
#23 17553-MAH-000

TUBE B, BREATHER

Contact us
#24 17554-MAH-000

TUBE C, BREATHER

Contact us
#25 17555-MAH-610 i

TUBE D, BREATHER

Contact us
#26 17556-MAH-000

JOINT, BREATHER THREE WAY

Contact us
#27 17557-MAH-000

TUBE E, BREATHER

Price €20.70
Contact us
#28 17570-MAH-610

RUBBER, BREATHER PATH

Contact us
#29 17724-102-700

AUXILIARY TANK HOSE CLIP

Price €7.08
#37 19111-MM8-000

STAY, FILLER NECK

Contact us
#38 32161-438-000

BAND, WIRE

Price €14.69
#39 61105-KM7-910

BAND OF FENDER FRONT

Price €6.26
#40 83606-356-000

BAND, SIDE COVER

Price €44.53
#41 90116-ME9-000

FLANGE BOLT, 6MM

Price €5.96
#45 93500-040200G

CYLINDRICAL HEAD SCREW, 4X20

Price €0.64
#46 93500-040250G i

CYLINDRICAL HEAD SCREW, 4X25

Price €0.78
#47 93891-0501607 i

SCREW A HEAD A WASHER, 5X16

Price €0.85
#48 95002-02120

CLAMP, TUBE (B12)

Price €1.08
#49 95002-02130

PIPE CLIP (B12.5)

Price €1.08
#50 95003-1902631

TUBE, VINYL, 7X11X260 (95003-19001-60M)

Contact us
#51 95701-0601008 i

FLANGE BOLT, 6X10

Price €1.08
#52 95701-0601208 i

FLANGE BOLT, 6X12

Price €1.08
#54 93500-040180G

SCREW, PAN, 4X18

Price €0.64
