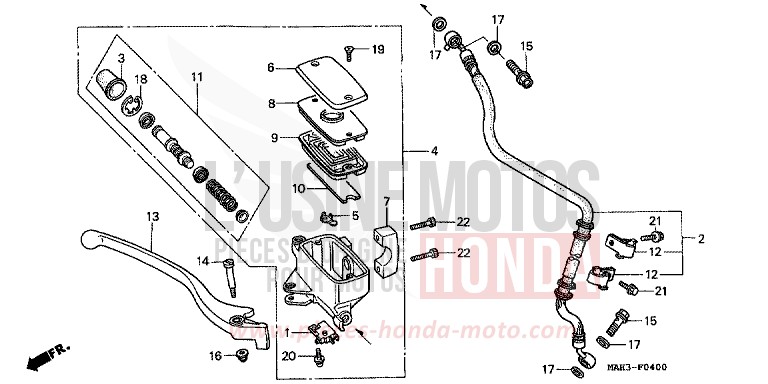

FR. BRAKE MASTER CYLINDER for Shadow REARL SEDONA RED (R223) from 1999

FR. BRAKE MASTER CYLINDER for Shadow REARL SEDONA RED (R223) from 1999
Reference
Product name
#1 35340-MM5-600

SWITCH ASSY, FR STOP

Price €44.35
#2 45126-MAH-A90

HOSE COMP, FR BRAKE

Contact us
#3 45504-410-003

BOOT COMP

Price €15.22
#4 45510-MAH-A81

CYLINDER SUB ASSY, FR BRAKE MASTER

Price €238.28
#5 45512-MA6-006

PROTECTOR

Price €74.21
#6 45513-MR1-006

CAP, MASTER CYLINDER (NISSIN)

Price €60.44
#7 45517-MR1-671

HOLDER, MASTER CYLINDER (NISSIN)

Price €30.79
#8 45518-MM5-006

PLATE, DIAPHRAGM

Price €15.23
#9 45520-MM5-006

DIAPHRAGM

Price €33.04
#10 45523-MN5-006

FLOAT, FR MASTER CYLINDER (NISSIN)

Price €11.76
#11 45530-471-831

CYLINDER SET, MASTER

Price €83.28
#12 52115-ML8-670

CLAMPER, BRAKE HOSE

Price €8.72
#13 53175-ML5-006

LEVER COMP, R HANDLE

Price €18.78
#14 90114-MA5-671

BOLT, HANDLE LEVER PIVOT

Price €11.93
#15 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#16 90201-415-000

NUT, CAP, 6MM

Price €5.94
#17 90545-300-000

WASHER, OIL BOLT

Price €6.41
#18 90651-MA5-671

CIRCLIP

Price €5.83
#19 93600-040121A

SCREW, FLAT, 4X12

Price €0.62
#20 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#21 95701-0601007

BOLT, FLANGE, 6X10

Price €0.97
#22 96700-0602210

BOLT, SOCKET, 6X22

Price €1.62
