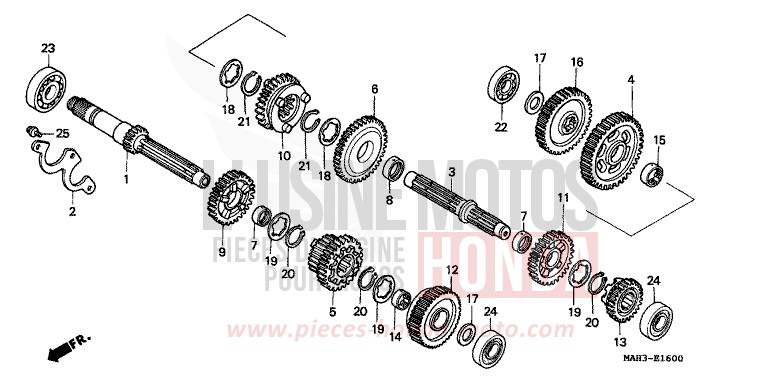

TRANSMISSION for Shadow REARL SEDONA RED (R223) from 1999

TRANSMISSION for Shadow REARL SEDONA RED (R223) from 1999
Reference
Product name
#1 23211-MAH-610

MAINSHAFT (16T)

Contact us
#2 23212-MK7-670

PLATE, BEARING

Contact us
#3 23220-MAA-610

COUNTERSHAFT COMP

Contact us
#4 23421-MAA-610

GEAR, COUNTERSHAFT LOW (38T)

Contact us
#5 23431-MAA-610

GEAR, MAINSHAFT SECOND &amp FOURTH (23T/36T)

Price €269.77
Contact us
#6 23441-MBH-000

GEAR, COUNTERSHAFT SECOND (32T)

Contact us
#7 23442-ML7-000

COLLAR, 28MM

Price €30.61
#8 23442-MS2-610

COLLAR, 30X112

Price €19.22
#9 23451-MAA-610

GEAR, MAINSHAFT THIRD (27T)

Price €183.02
#10 23461-MBH-000

GEAR, COUNTERSHAFT THIRD (28T)

Contact us
#11 23481-MAA-610

GEAR, COUNTERSHAFT FOURTH (32T)

Price €250.31
#12 23491-MAA-610

GEAR, MAINSHAFT FIFTH (30T)

Price €230.65
Contact us
#13 23501-MAH-000

GEAR, COUNTERSHAFT FIFTH (23T)

Contact us
#14 23512-MM8-000

COLLAR, SPLINE, 28X26X17

Contact us
#15 23514-MM8-000

COLLAR, SPLINE, 30X28X11

Price €21.78
Contact us
#16 23725-MAH-610

GEAR, FINAL DRIVE (37T)

Contact us
#17 90404-KK0-000

WASHER, 20X37X2

Price €5.34
#18 90451-MG8-000

WASHER, THRUST, 30MM

Price €4.97
Contact us
#19 90451-422-000

WASHER, THRUST, 28MM

Price €13.50
#20 90601-422-000

CIRCLIP, 28MM

Price €7.34
#21 90604-MG8-000

CIRCLIP, 30MM

Price €10.14
#22 91003-MG8-003

BEARING, RADIAL BALL, 20X52X15( TOYO)

Price €34.50
#23 91004-MG8-003

BEARING, RADIAL BALL, 305/28 (TOYO)

Price €34.50
#24 91005-MG8-003

BEARING, SEALED BALL, 20X52X15( TOYO)

Price €32.23
#25 95701-0601600

BOLT, FLANGE, 6X16

Price €1.15
