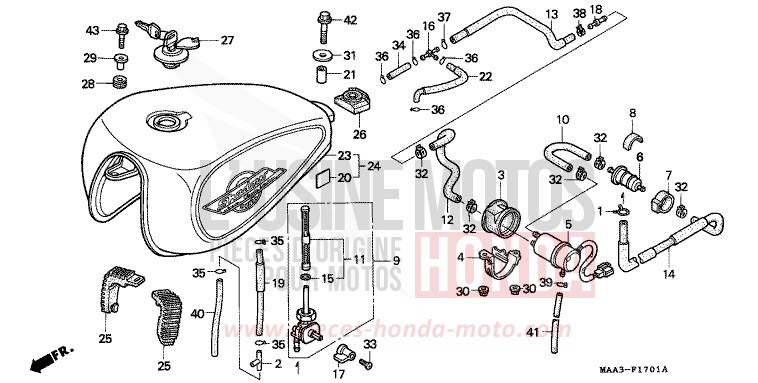

FUEL TANK/FUEL PUMP (VT1100CV/CW/C2) for Shadow PEARL ROYAL MAGENTA (RP151A) from 1996

FUEL TANK/FUEL PUMP (VT1100CV/CW/C2) for Shadow PEARL ROYAL MAGENTA (RP151A) from 1996
Reference
Product name
#1 15771-KV6-000

CLIP, OIL DRAIN TUBE

Price €5.51
#2 16180-195-731

T-JOINT

Price €16.86
#3 16701-MAA-000

CUSHION, FUEL PUMP

Price €40.42
#4 16703-MM8-000

BAND, FUEL PUMP

Price €36.13
Contact us
#5 16710-MAH-751

PUMP COMP, FUEL

Price €543.65
#6 16900-MG8-003

STRAINER COMP, FUEL

Price €45.96
#7 16905-MG7-000

CUSHION, FUEL STRAINER

Price €16.07
#8 16911-MAH-300

PROTECTOR

Price €3.72
#9 16950-MAH-003

COCK ASSY, FUEL

Price €153.12
#10 16952-MAH-000

TUBE B, FUEL

Price €9.67
Contact us
#11 16952-MAH-003

SCREEN SET, FUEL STRAINER

Price €53.12
#12 16953-MAH-000

TUBE C, FUEL

Price €10.48
Contact us
#13 16954-MAH-000

TUBE D, FUEL

Price €18.80
#14 16955-MAH-000

TUBE A, FUEL

Price €30.70
#15 16958-KM9-005

O-RING

Price €6.34
#16 16961-MK7-000

JOINT, FUEL TUBE

Price €25.52
#17 16963-MY5-610

LEVER, FUEL COCK

Price €23.05
#18 16966-MR1-000

JOINT, FUEL TUBE

Price €9.98
#19 17467-MAH-000

TUBE, FUEL TANK BREATHER

Price €29.36
#20 17512-MAH-610

TAPE, PROTECTION

Contact us
#21 17515-MAH-000

COLLAR, FUEL TANK MOUNTING

Price €4.18
#22 17515-MG8-000

TUBE, L CARBURETOR FUEL

Price €19.69
#25 17611-MM8-000

CUSHION, FR FUEL TANK

Price €21.00
#26 17613-MM8-000

CUSHION, RR FUEL TANK

Price €39.08
#27 17620-KR3-751

CAP COMP, FUEL FILLER

Price €113.14
#28 19051-GE2-000

RUBBER, RADIATOR MOUNTING

Price €13.82
#29 61104-422-000

COLLAR, SETTING

Price €10.49
#30 90301-473-003

NUT, U, 6MM (FUSE RASHI)

Price €7.24
#31 90455-896-700

WASHER, TANK MOUNTING

Price €3.60
#32 90682-SA0-671

CLAMP, CANISTER HOSE

Price €7.36
#33 93700-050120G

SCREW, OVAL, 5X12

Price €0.62
#34 95001-5506540

TUBE, FUEL, 53X65 (95001-55001-60M)

Price €2.72
Contact us
#35 95002-02080

CLIP, TUBE (B8)

Price €0.78
#36 95002-02100

CLIP, TUBE (B10)

Price €1.06
#37 95002-02120

CLIP, TUBE (B12)

Price €1.06
#38 95002-4120008

CLAMP, TUBE (D12)

Price €1.91
#39 95002-50000

CLIP, TUBE (C9)

Price €0.77
#40 95005-4532011

TUBE, 45X320 (95005-45001-10M)

Contact us
#41 95005-5030030

TUBE, 5X300 (95005-50001-30M)

Price €4.21
#42 95701-0803207

BOLT, FLANGE, 8X32

Price €1.62
#43 96001-0602507

BOLT, FLANGE, 6X25

Price €1.22
