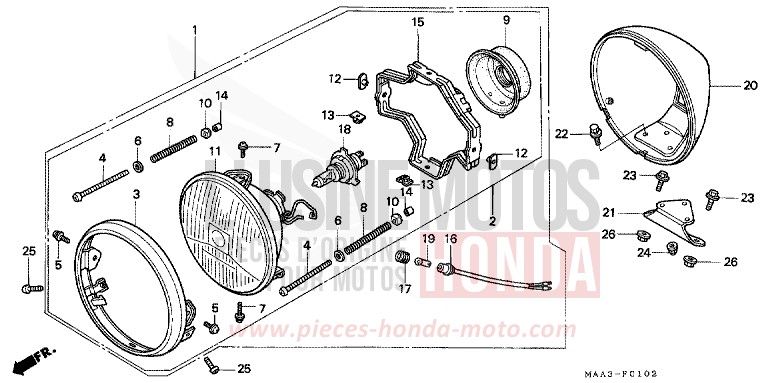

HEADLIGHT (VT1100C2) for Shadow PEARL ROYAL MAGENTA (RP151A) from 1996

HEADLIGHT (VT1100C2) for Shadow PEARL ROYAL MAGENTA (RP151A) from 1996
Reference
Product name
#1 33100-MAH-611

HEADLIGHT ASSY

Contact us
#3 33101-MAH-671

RIM COMP, HEADLIGHT

Price €113.81
#4 33103-MAH-671

SCREW, BEAM ADJUSTING

Price €7.36
#5 33104-MAH-671

SCREW-WASHER

Price €6.25
#6 33105-MAH-671

WASHER

Price €2.71
#7 33106-MAH-671

SCREW-WASHER

Price €3.19
Contact us
#8 33107-MK7-671

SPRING, BEAM ADJUSTING

Price €6.50
#9 33112-MM9-013

COVER, RUBBER

Price €37.75
#10 33118-438-841

NUT, BEAM ADJUSTING

Price €5.93
#11 33120-MAH-611

HEADLIGHT UNIT

Price €452.88
#12 33128-MAH-671

NUT, SPECIAL

Price €7.14
#13 33129-MAH-671

NUT COMP

Price €11.75
#14 33136-426-830

COVER, SCREW

Price €6.34
#15 33153-MAH-672

RING COMP, MOUNTING

Price €59.38
Contact us
#16 33170-MAH-611

SOCKET COMP, POSITION LIGHT

Price €24.05
Contact us
#17 33905-371-601

RUBBER, JOINT

Price €8.86
#18 34901-MC7-601

BULB, HEADLIGHT (12V 60/55W) (STANLEY)

Price €41.59
#19 34903-388-611

BULB, POSITION (12V 4W) (STANLEY)

Price €3.40
#20 61301-MAH-003

CASE COMP, HEADLIGHT

Price €256.30
Contact us
#21 61311-MAH-003

STAY, HEADLIGHT

Contact us
#22 90116-MAH-003

BOLT-WASHER, 6X18

Contact us
#23 90183-438-000

BOLT, SPECIAL FLANGE, 8X26

Price €8.89
#24 90202-ZV0-000

NUT, CAP, 6MM

Price €3.38
#25 93500-050120B

SCREW, PAN, 5X12

Price €1.06
#26 94050-08000

NUT, FLANGE, 8MM

Price €2.40
