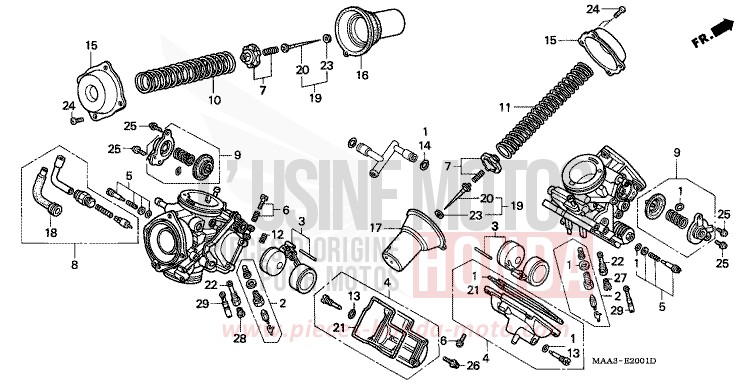

CARBURETOR (COMPONENT PARTS) for Shadow PEARL HOD ROD YELLOW (Y130A) from 1997

CARBURETOR (COMPONENT PARTS) for Shadow PEARL HOD ROD YELLOW (Y130A) from 1997
Reference
Product name
#1 16010-MAH-000 i

GASKET SET

Price €82.97
#2 16011-MAH-000

VALVE SET, FLOAT

Price €96.47
#3 16013-MAH-000 i

FLOAT SET

Price €80.56
#4 16015-MAH-000 i

CHAMBER SET, FLOAT

Price €252.38
Contact us
#5 16016-MAH-610 i

SET OF SCREW

Price €46.30
#6 16029-MB0-671

SET OF SCREW C

Price €35.57
#7 16037-MN9-004 i

PLATE SET, VALVE

Price €39.82
#8 16046-MZ6-730 i

VALVE SET, STARTER

Price €81.29
#9 16048-MAH-610

VALVE SET, AIR CUT

Price €154.96
Contact us
#11 16050-ME9-671

SPRING, VACUUM PISTON

Price €17.65
Contact us
#12 16052-ME9-672 i

SPRING

Price €11.46
#15 16107-MM8-004

UPPER COMP.

Price €91.92
#17 16112-MAH-610

PISTON COMP, VACUUM

Price €286.81
Contact us
#18 16118-ME9-671

CAP OF GASKET OF CABLE

Price €20.00
#19 16131-MAH-610

NEEDLE COMP, JET

Price €36.54
Contact us
#22 16165-ME9-671 i

HOLDER, NEEDLE JET

Price €37.06
Contact us
#24 93500-040101A i

CYLINDRICAL HEAD SCREW, 4X10

Price €0.78
#25 93892-0401218 i

SCREW-WASHER, 4X12

Price €0.88
#26 93892-0401610 i

SCREW A HEAD A WASHER, 4X16

Price €0.85
#27 99101-GHB1320 i

JET, MAIN, 132

Price €13.51
#28 99101-GHB1350 i

JET, MAIN, 135

Price €13.99
#29 99103-MT20420 i

JET, SLOW, 42

Price €21.00
