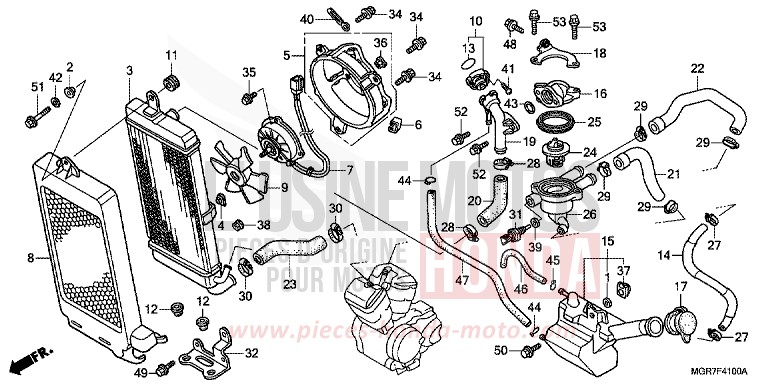

RADIATOR for Shadow PEARL HERON BLUE (PB332X) from 2011

RADIATOR for Shadow PEARL HERON BLUE (PB332X) from 2011
Reference
Product name
#1 16573-ZE6-300

COLLAR, CONTROL

Price €2.10
#2 17216-HA7-670

COLLAR, AIR CLEANER SETTING

Price €10.82
#3 19010-MGR-671 i

RADIATOR COMP

Price €843.14
#4 19014-KEA-003

NUT, POSE (6MM)

Price €7.20
#5 19015-MBA-003 i

SHROUD COMP

Price €157.45
#6 19017-PK1-004

CLIP, HARNESS (TRAD)

Price €9.10
#7 19030-MGR-671

MOTOR ASSY, FAN

Price €663.48
#8 19032-MBA-010 i

GRILLE, RADIATOR

Price €145.03
#9 19040-MF5-751 i

FAN OF REFROIDISSEMENT (T.WHEEL)

Price €107.16
#10 19045-MFF-A51

CAP COMP., RADIATOR

Price €47.45
#11 19051-KA3-710

RUBBER, RADIATOR MOUNTING

Price €9.20
#12 19051-MB2-000

RUBBER OF MOUNTING OF RADIATOR

Price €9.37
#13 19055-KPC-871 i

GASKET, KUHLERVERSCHLUSS (BILDSYMBOL)

Price €14.33
#14 19071-MGR-670

HOSE, BYPASS

Price €60.11
#15 19101-MBA-010 i

TANK ASSY, RESERVE

Price €89.59
#16 19103-MGR-670

CAP, THERMOSTAT

Price €61.21
#17 19104-MB0-700 i

CAP, RESERVE TANK

Price €19.08
#18 19105-MGR-670

STAY, THERMOSTAT CASE

Price €9.43
#19 19106-MM8-000

NECK, FILLER

Price €82.42
#20 19107-MGR-670

HOSE, RADIATOR UPPER

Price €13.16
#21 19108-MGR-670

HOSE, FR OUTLET WATER

Price €21.80
#22 19110-MGR-670

HOSE, RR OUTLET WATER

Price €31.96
#23 19115-MBA-000

HOSE, RADIATOR LOWER

Price €43.10
#24 19300-MCH-A00 i

THERMOSTAT ASSY

Price €114.60
#25 19305-KV3-010 i

RUBBER OF THERMOSTAT

Price €13.48
#26 19310-MGR-670

CASE COMP, THERMOSTAT

Price €132.00
#27 19504-KY1-003 i

WATER HOSE CLIP, 25MM

Price €17.80
#28 19505-ML3-770

WATER HOSE CLIP

Price €18.26
#29 19506-KS6-700

CLIP B OF HOSE WATER

Price €18.26
#30 19509-MM5-003

FLANGE, PIPE OF RADIATOR

Price €23.09
#31 37870-KRJ-901 i

ASSY. SENSOR, TEMPERATURE WATER

Price €75.68
#32 50175-MBA-000

STAY, RADIATOR

Price €32.74
#34 90120-KCR-003

BOLT WITH WASHER, 6X16

Price €6.82
#35 90196-MBB-003

FLANGE BOLT, 5X10

Price €4.82
#36 90303-MBB-003

SPECIAL NUT, 5MM

Price €6.53
#37 90305-KT7-000

CALIPER NUT, 6MM

Price €6.53
#38 90315-MK3-003

NUT DENTELE, 5MM

Price €5.57
#39 90454-MC7-000

SPECIAL WASHER, 12MM

Price €5.99
#40 91413-679-000

PINCE, 2X70

Price €11.57
#41 93901-22180

SELF-TAPPING SCREW, 3X8

Price €0.64
#42 94101-06700

WASHER PLATE, 6MM

Price €0.78
#43 94608-30000 i

O-RING, 23X24

Price €1.81
#44 95002-02120

CLAMP, TUBE (B12)

Price €1.08
#45 95002-50000 i

PIPE CLIP (C9)

Price €0.78
#46 95005-5017030

TUBE, 5X170 (95005-50001-30M)

Price €3.06
Contact us
#47 95005-7563020 i

TUBE, (95005-75001-20M) (95005-75001-20M)

Price €18.74
Contact us
#48 95701-0601200 i

FLANGE BOLT, 6X12

Price €1.15
#49 95701-0601407 i

FLANGE BOLT, 6X14

Price €1.15
#50 95701-0601600 i

FLANGE BOLT, 6X16

Price €1.18
#51 95701-0603007 i

BOLT, FLANGE, 6X30

Price €1.42
#52 96001-0601400 i

FLANGE BOLT, 6X14

Price €1.34
#53 96001-0602000 i

FLANGE BOLT, 6X20

Price €1.25
