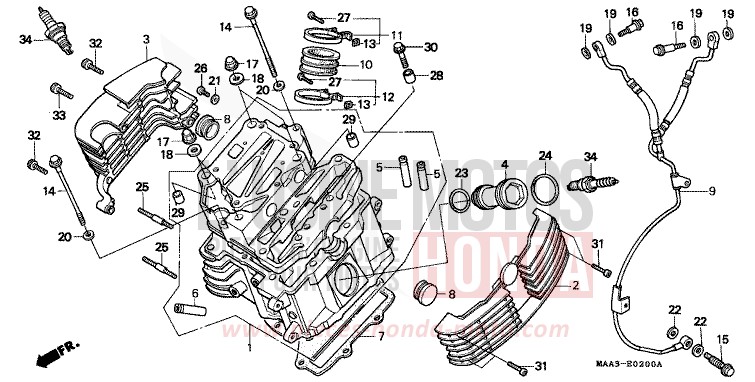

CYLINDER HEAD (FRONT) (VT1100CS/CT) for Shadow PEARL ATLANTIS BLUE (B142AA) from 1995

CYLINDER HEAD (FRONT) (VT1100CS/CT) for Shadow PEARL ATLANTIS BLUE (B142AA) from 1995
Reference
Product name
#1 12010-MAA-010

HEAD ASSY, FR CYLINDER

Contact us
#2 12211-MM8-680

FIN A, FR CYLINDER HEAD

Contact us
#3 12221-MM8-680

FIN B, FR CYLINDER HEAD

Contact us
#4 12225-MG8-000

SLEEVE, PLUG

Price €52.19
#5 12231-MG8-305 i

GUIDE, IN VALVE (OS)

Price €40.30
#6 12233-MG8-305 i

GUIDE, EX VALVE (OS)

Price €61.02
#7 12251-MG8-004 i

GASKET, CYLINDER HEAD

Price €66.56
#8 12312-ME9-750

PLUG, CAMSHAFT

Price €18.26
#9 15520-MM8-680

PIPE, OIL FEED

Contact us
#10 16211-MG8-000

INSULATOR, CARBURETOR

Price €35.11
#11 16218-MAA-000

BAND, INSULATOR

Contact us
#12 16219-MAH-000

BAND B, INSULATOR

Price €14.83
#13 16222-MV4-300

NUT, SQUARE, 5MM

Price €4.88
#14 90015-MG8-000 i

BOLT, FLANGE, 8X150

Price €10.70
#15 90045-ME9-000

BOLT COMP, OIL CONTROL

Contact us
#16 90130-ME9-000

BOLT, SPECIAL, 6X49

Contact us
#17 90209-MM8-000 i

NUT, CAP, 10MM

Price €8.76
#18 90403-ML4-610 i

WASHER, SEALING, 10MM

Price €11.70
#19 90441-MC0-000

WASHER, SEALING, 7MM

Price €5.99
#20 90441-ME9-000

WASHER, SEALING, 8MM

Price €5.99
#21 90452-323-000

WASHER, SEALING, 5MM

Price €5.99
#22 90545-300-000 i

WASHER, OIL BOLT

Price €5.30
#23 91304-MG7-003 i

O-RING, 274X24 (ARAI)

Price €10.66
#24 91351-MG7-004 i

O-RING, 353X24 (NOK)

Price €11.72
#25 92900-080350E i

BOLT, STUD, 8X35

Price €1.74
#26 93500-050080A i

SCREW, PAN, 5X8

Price €0.95
#27 93500-050250G i

SCREW, PAN, 5X25

Price €0.85
#28 94301-10160 i

DOWEL PIN, 10X16

Price €2.38
#29 94301-14200 i

DOWEL PIN, 14X20

Price €2.08
#30 95701-0603500 i

BOLT, FLANGE, 6X35

Price €1.34
#31 96700-0602500

BOLT, SOCKET, 6X25

Price €1.50
#32 96700-0603500

BOLT, SOCKET, 6X35

Price €1.50
#33 96700-0604500

BOLT, SOCKET, 6X45

Price €2.22
Contact us
#34 98069-56916 i

PLUG, SPARK (DPR6EA-9) (NGK)

Price €11.15
#34 98069-56926

PLUG, SPARK (X20EPR-U9) (DENSO)

Price €11.15
#34 98069-57916 i

PLUG, SPARK (DPR7EA-9) (NGK)

Price €6.41
#34 98069-57926

PLUG, SPARK (X22EPR-U9)

Price €6.41
#34 98069-58916 i

PLUG, SPARK (DPR8EA-9) (NGK)

Price €6.41
#34 98069-58926

PLUG, SPARK (X24EPR-U9) (DENSO)

Price €6.41
