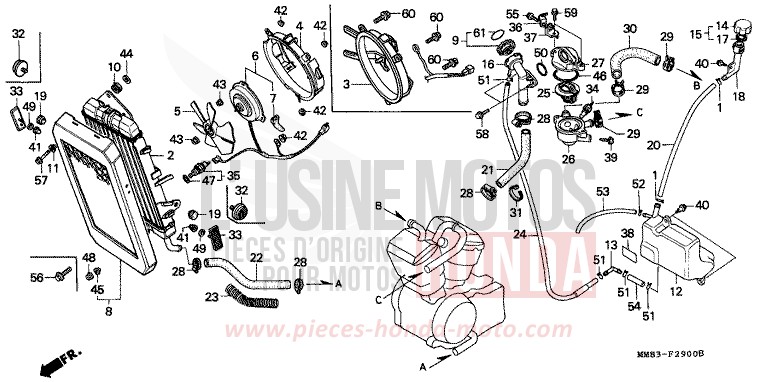

RADIATOR for Shadow PEARL ATLANTIS BLUE (B142AA) from 1994

RADIATOR for Shadow PEARL ATLANTIS BLUE (B142AA) from 1994
Reference
Product name
#1 17316-MN1-670

CIRCLIP A OF TUBE OF RENIFLARD

Price €6.94
#2 19010-MAA-003

RADIATOR COMP

Contact us
#3 19015-MAA-003

SHROUD COMP

Contact us
#5 19020-MG8-003

FAN COMP, COOLING

Price €123.32
#6 19030-MAA-003

MOTOR ASSY, FAN

Contact us
#8 19040-MM8-610

COVER, RADIATOR

Price €162.83
Contact us
#9 19045-MY3-621 i

CAP COMP. RADIATOR

Price €69.29
#10 19051-KA4-000

MOUNTING RUBBER, RADIATOR

Price €9.37
#11 19052-MB0-000 i

RADIATOR MOUNTING BAND

Price €11.70
#12 19103-MM8-010

TANK, RESERVE

Price €99.32
Contact us
#13 19103-463-000

JOINT, TUBE

Contact us
#14 19104-ME9-000

PLUG OF TANK OF RESERVE

Price €20.00
#15 19105-MG8-000

ASSY. CAP OF TANK OF SECOURS

Price €26.53
#16 19106-MM8-000

NECK, FILLER

Price €82.42
#17 19107-MG8-000

GASKET OF TANK OF RESERVE

Price €5.45
#18 19111-MR1-000

NECK, RESERVE TANK FILLER

Price €41.11
#19 19112-MF5-840

MOUNT, RADIATOR LOWER

Price €14.99
#20 19113-MM8-000

TUBE, RADIATOR RESERVE TANK

Price €34.14
#21 19116-MM8-000

HOSE, RADIATOR UPPER

Price €26.75
#22 19117-MM8-000

HOSE, RADIATOR LOWER

Price €56.24
#23 19120-MM8-000

GUARD, RADIATOR LOWER HOSE

Price €32.86
#24 19206-MM8-000

TUBE, RADIATOR RESERVE

Price €20.95
Contact us
#25 19300-MB0-003

THERMOSTAT

Price €128.56
#26 19311-MM8-000

CASE, THERMOSTAT

Price €145.78
#27 19315-MG8-000

COVER, THERMOSTAT

Price €129.86
Contact us
#28 19516-MJ8-000 i

CLAMP A, WATER HOSE

Price €24.88
#29 19517-KM9-000

CLIP, WATER HOSE

Price €12.60
#30 19521-MM8-000

HOSE A, OUTLET WATER

Price €27.53
#31 32161-438-000

BAND, WIRE

Price €14.69
#34 37750-PC1-004 i

THERMO-UNIT (DENSO)

Price €79.03
#35 37760-MR1-003 i

ASSY. OF SWITCH, THERMIQUE

Price €153.10
#36 50176-KE8-000

CLAMPER A, CHOKE CABLE

Contact us
#37 50189-MM8-000

BRACKET, THERMOSTAT CASE

Price €21.43
#39 90042-MB6-000

BOLT, SPECIAL, 8MM

Price €6.67
Contact us
#40 90116-ME9-000

FLANGE BOLT, 6MM

Price €5.96
#43 90315-MK3-003

NUT DENTELE, 5MM

Price €5.57
#45 90522-MF5-000 i

WASHER, FR COVER

Price €6.54
#46 91307-MB0-003 i

O-RING, 54X2 (ARAI)

Price €8.14
#47 91307-611-000

O-RING, 13.5X1.4

Price €4.96
#50 94608-30000 i

O-RING, 23X24

Price €1.81
#51 95002-02120

CLAMP, TUBE (B12)

Price €1.08
#52 95002-70000

PIPE CLIP (C11)

Price €0.88
#53 95005-7033030

TUBE, 7X330 (95005-70001-30M)

Contact us
#54 95005-7504520

TUBE, 73X45 (95005-75001-20M)

Contact us
#55 95701-0601208 i

FLANGE BOLT, 6X12

Price €1.08
#56 95701-0602007 i

FLANGE BOLT, 6X20

Price €1.15
#57 95701-0602807 i

FLANGE BOLT, 6X28

Price €1.25
#58 96001-0601407 i

FLANGE BOLT, 6X14

Price €1.34
#59 96001-0602007 i

FLANGE BOLT, 6X20

Price €1.42
#60 96001-0601000 i

FLANGE BOLT, 6X10

Price €1.42
