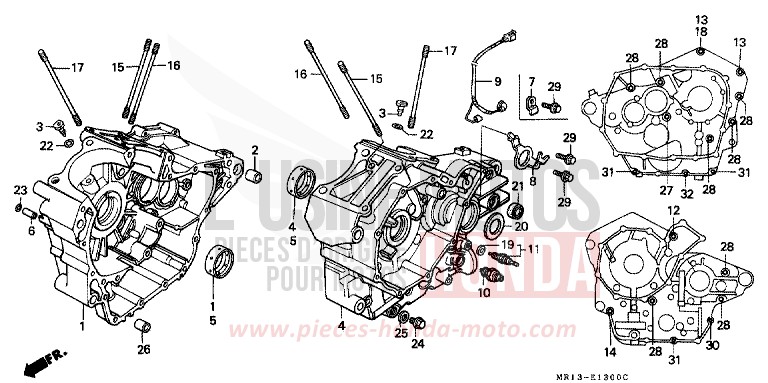

CRANKCASE for Shadow KASHMIR BEIGE (YR169N) from 1993

CRANKCASE for Shadow KASHMIR BEIGE (YR169N) from 1993
Reference
Product name
#1 11100-MR1-830

CRANKCASE COMP, R

Contact us
#2 11105-MM9-000

COLLAR, 23X20

Price €10.30
#3 11146-MM9-000

JET, OIL

Contact us
#4 11200-MR1-830

CRANKCASE COMP, L

Contact us
#5 13325-MM9-315

BEARING A, MAIN (BLUE)

Price €48.30
#5 13326-MM9-315

BEARING B, MAIN (BLACK)

Price €48.30
#5 13327-MM9-315

BEARING C, MAIN (BROWN)

Price €48.30
Contact us
#8 23531-MV1-000

PLATE, OIL SEAL SETTING

Price €11.60
#9 32101-MR1-000

SUB HARNESS A

Price €16.93
Contact us
#10 35500-MJ4-024

SWITCH ASSY, OIL PRESSURE (DENSO)

Price €83.11
#11 35600-MS9-600

SWITCH ASSY, NEUTRAL

Price €38.17
#12 90001-MM9-000

BOLT, SOCKET, 8X125

Contact us
#13 90002-MR1-000

BOLT, FLANGE, 8X140

Contact us
#14 90008-KE9-000

BOLT, FLANGE, 8X70

Price €1.97
#15 90011-MV1-000

BOLT, STUD, 8X189

Contact us
#16 90012-MR1-000

BOLT, STUD, 10X1935

Contact us
#17 90013-MR1-000

BOLT, STUD, 10X197

Contact us
#18 90442-MR1-770

WASHER, SEALING, 8MM

Price €4.34
#19 90443-KR0-000

WASHER, NEUTRAL SWITCH

Price €3.83
#20 91204-MG3-003

OIL SEAL, 25X45X7 (ARAI)

Price €14.33
#21 91204-425-003

OIL SEAL, 125X25X8 (ARAI)

Price €11.35
#22 91305-MG7-003

O-RING, 5X17 (ARAI)

Price €5.41
#24 92800-14000

BOLT, DRAIN PLUG, 14MM

Price €2.94
#25 94109-14000

WASHER, DRAIN PLUG, 14MM

Price €1.74
#26 94301-14200

DOWEL PIN, 14X20

Price €2.04
#27 95701-0806500

BOLT, FLANGE, 8X65

Price €2.02
#28 95701-0808000

BOLT, FLANGE, 8X80

Price €1.78
#29 96001-0601400

BOLT, FLANGE, 6X14

Price €1.32
#30 96001-0604000

BOLT, FLANGE, 6X40

Price €1.70
#31 96001-0605000

BOLT, FLANGE, 6X50

Price €1.70
#32 96001-0608000

BOLT, FLANGE, 6X80

Price €1.78
