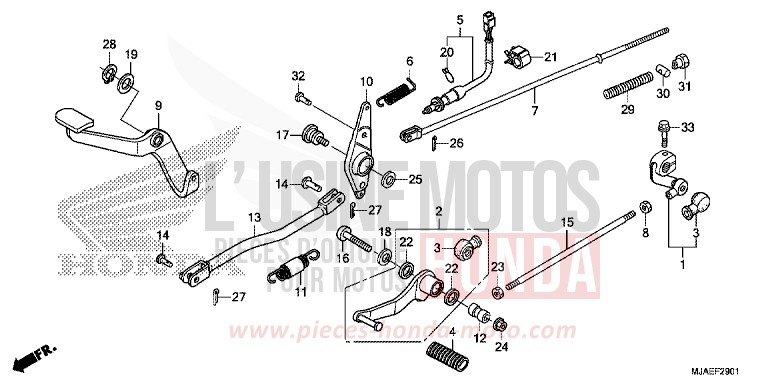

PEDAL (VT750S) for Shadow GRAPHITE BLACK (NHB01) from 2014

PEDAL (VT750S) for Shadow GRAPHITE BLACK (NHB01) from 2014
Reference
Product name
#1 24702-MGR-670

ARM COMP, CHANGE

Price €144.83
#2 24710-MGR-670 i

PEDAL COMP, CHANGE

Price €99.38
#3 24724-MBW-D21

COVER-POUSSIERE

Price €16.73
#4 24781-KR3-770

RUBBER, GANGSCHALTPEDAL

Price €8.78
#6 35357-MGR-670

SPRING, STOP SWITCH

Price €14.38
#7 43451-MGR-670

ROD COMP, RR BRAKE

Price €43.42
#8 45423-KA4-700

NUT HEX., 6MM (LEFT HAND THREAD)

Price €5.84
#9 46501-MGR-670 i

PEDAL, RR BRAKE

Price €102.70
#10 46510-MGR-670

ARM COMP, RR BRAKE MIDDLE

Price €149.66
#11 46513-KR6-000

SPRING SET, BRAKE PEDAL

Price €15.98
#12 46515-MM8-000

COLLAR, RR BRAKE PIVOT

Price €17.39
#13 46540-MGR-670

ROD, RR BRAKE MIDDLE

Price €111.38
#14 46545-MBA-000

PIN, MIDDLE ROD JOINT

Price €12.35
#15 90101-MGR-670

BOLT, TIE ROD

Price €11.96
#16 90107-MGR-670

BOLT, SOCKET, 10X54

Price €11.28
#17 90116-MGR-670

BOLT B, PIVOT

Price €31.56
#18 90521-427-770

WASHER, 103MM

Price €7.48
#19 90557-230-000

WASHER, 15.2X25

Price €6.80
#20 90601-KAF-003

CLIP, SWITCH COVER

Price €6.23
#21 90690-GHB-641 i

WIRE CLIP, 10MM

Price €2.08
#22 91206-968-003 i

DUST SEAL, 17X23X3 (NOK)

Price €6.07
#23 94002-060000S i

NUT HEX., 6MM

Price €1.07
#24 94050-10000 i

FLANGE NUT, 10MM

Price €2.94
#25 94103-10700

WASHER PLATE, 10MM

Price €1.24
#26 94201-20120 i

SPLIT PIN, 2.0X12

Price €0.78
#27 94201-20150 i

SPLIT PIN, 2.0X15

Price €0.78
#28 94511-15000

CIRCLIP OUTER, 15MM

Price €0.94
#29 95014-73100 i

SPRING A OF ROD OF BRAKE

Price €1.50
#30 95015-32001 i

BRAKE ARM CONNECTOR B

Price €1.50
#31 95015-42000 i

NUT B OF ADJUSTMENT OF ROD OF BRAKE

Price €3.00
#32 95015-53000 i

PIN C, RACCORD

Price €3.00
#33 95701-0602000 i

FLANGE BOLT, 6X20

Price €1.08
#5 35350-MGR-672 i

SWITCH ASSY, RR STOP

Price €81.00
